ZETARA 16kWh LiFePO4 Battery Pack 51.2V 314Ah Real Capacity Grade a Cells 16 Units Parallel Support 256kWh Max Energy
ZETARA 16kWh LiFePO4 Battery Pack 51.2V 314Ah Real Capacity Grade a Cells 16 Units Parallel Support 256kWh Max Energy
ZETARA 16kWh LiFePO4 Battery Pack 51.2V 314Ah Real Capacity Grade a Cells 16 Units Parallel Support 256kWh Max Energy
ZETARA 16kWh LiFePO4 Battery Pack 51.2V 314Ah Real Capacity Grade a Cells 16 Units Parallel Support 256kWh Max Energy
ZETARA 16kWh LiFePO4 Battery Pack 51.2V 314Ah Real Capacity Grade a Cells 16 Units Parallel Support 256kWh Max Energy
ZETARA 16kWh LiFePO4 Battery Pack 51.2V 314Ah Real Capacity Grade a Cells 16 Units Parallel Support 256kWh Max Energy
ZETARA 16kWh LiFePO4 Battery Pack 51.2V 314Ah Real Capacity Grade a Cells 16 Units Parallel Support 256kWh Max Energy
ZETARA 16kWh LiFePO4 Battery Pack 51.2V 314Ah Real Capacity Grade a Cells 16 Units Parallel Support 256kWh Max Energy
ZETARA 16kWh LiFePO4 Battery Pack 51.2V 314Ah Real Capacity Grade a Cells 16 Units Parallel Support 256kWh Max Energy
ZETARA 16kWh LiFePO4 Battery Pack 51.2V 314Ah Real Capacity Grade a Cells 16 Units Parallel Support 256kWh Max Energy
ZETARA 16kWh LiFePO4 Battery Pack 51.2V 314Ah Real Capacity Grade a Cells 16 Units Parallel Support 256kWh Max Energy
ZETARA 16kWh LiFePO4 Battery Pack 51.2V 314Ah Real Capacity Grade a Cells 16 Units Parallel Support 256kWh Max Energy

ZETARA 16kWh LiFePO4 Battery Pack 51.2V 314Ah Real Capacity Grade a Cells 16 Units Parallel Support 256kWh Max Energy

Get a Quote
Product Description
Products Description
The ZETARA ZRLVESS16KW is a 51.2V 314Ah LiFePO4 battery module with 16.08kWh nominal energy, designed for residential solar energy storage, backup power and off-grid power systems. It features an intelligent built-in BMS that monitors voltage, current, temperature, SOC and operating status while providing comprehensive battery protection.

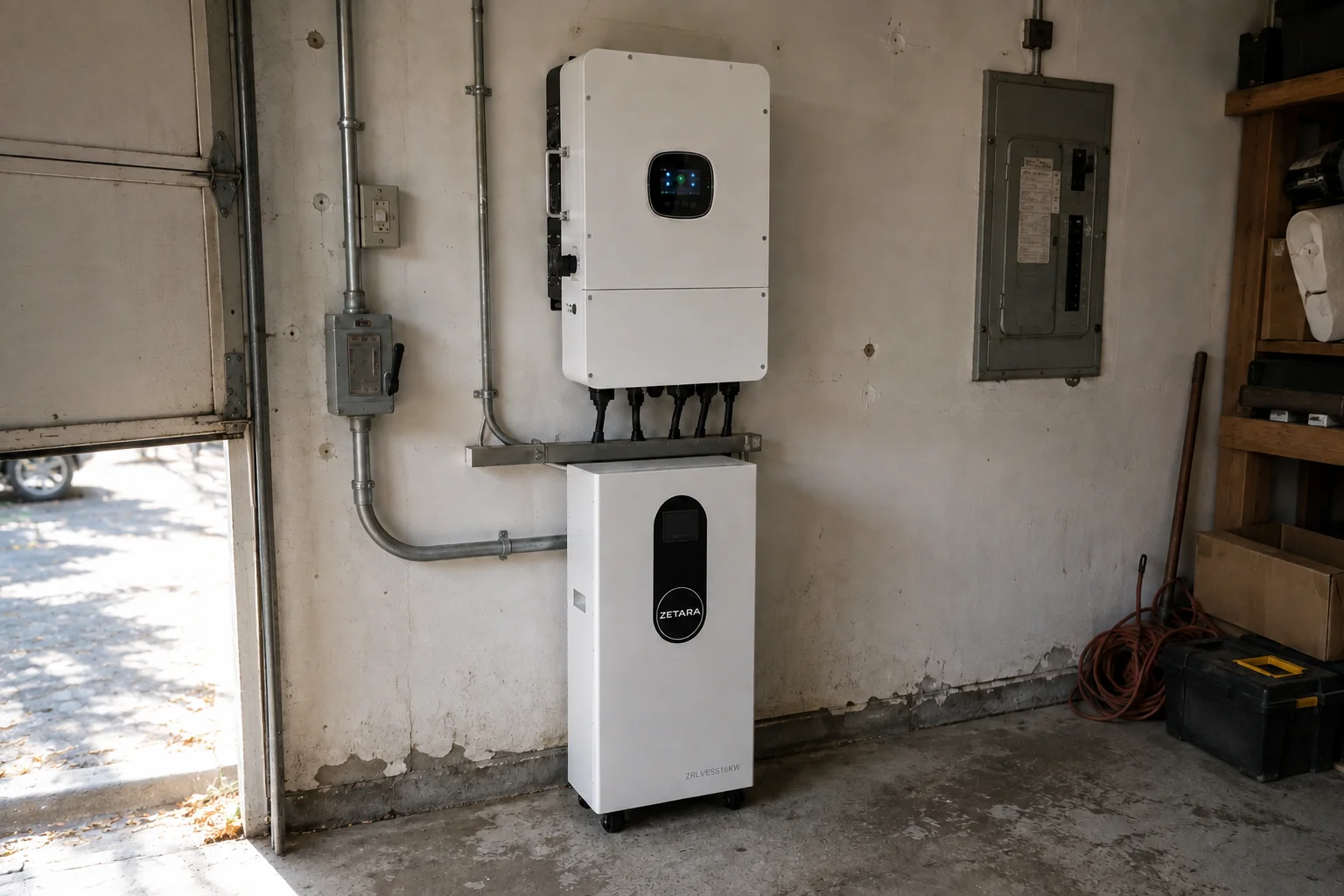

With excellent safety, long cycle life, high energy density, a wide operating temperature range and maintenance-free performance,the ZRLVESS16KW provides a reliable and environmentally responsible energy storage solution. CAN and RS485 communication interfaces enable integration with compatible solar inverters, while its floor-standing and wall-mounted design supports flexible installation in homes, garages, utility rooms and small commercial energy storage projects.
product zetara 16kwh lifepo4 battery pack 512v 314ah real capacity grade a cells 16 units parallel support 256kwh max energy-2
1.16.08kWh High Capacity
Provides reliable energy storage for home backup and solar systems.
2.Intelligent Built-In BMS
Monitors voltage, current, temperature, SOC and battery status.

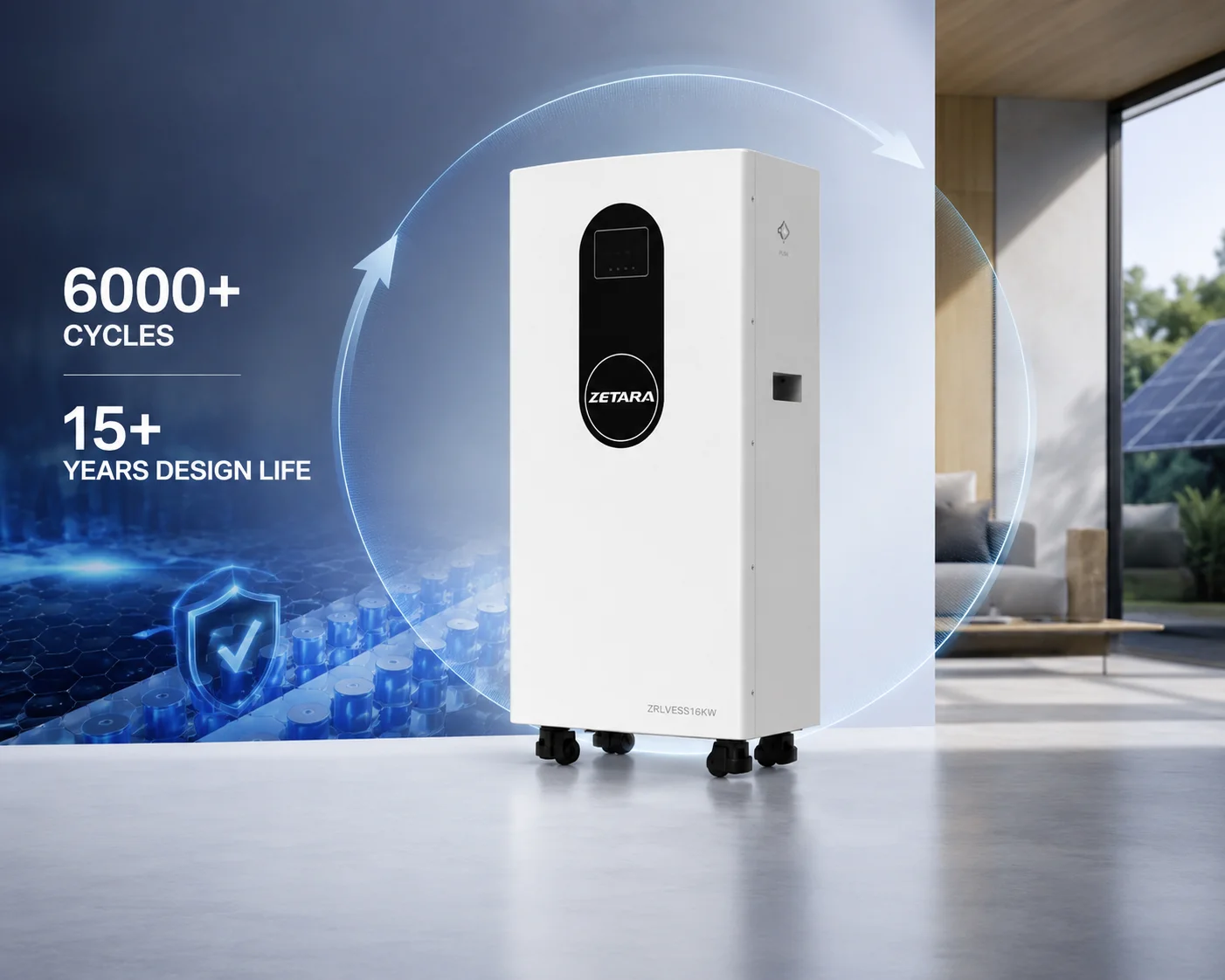

3.More Than 6,000 Cycles
Long-lasting LiFePO4 performance at 0.5C and 90% DOD.

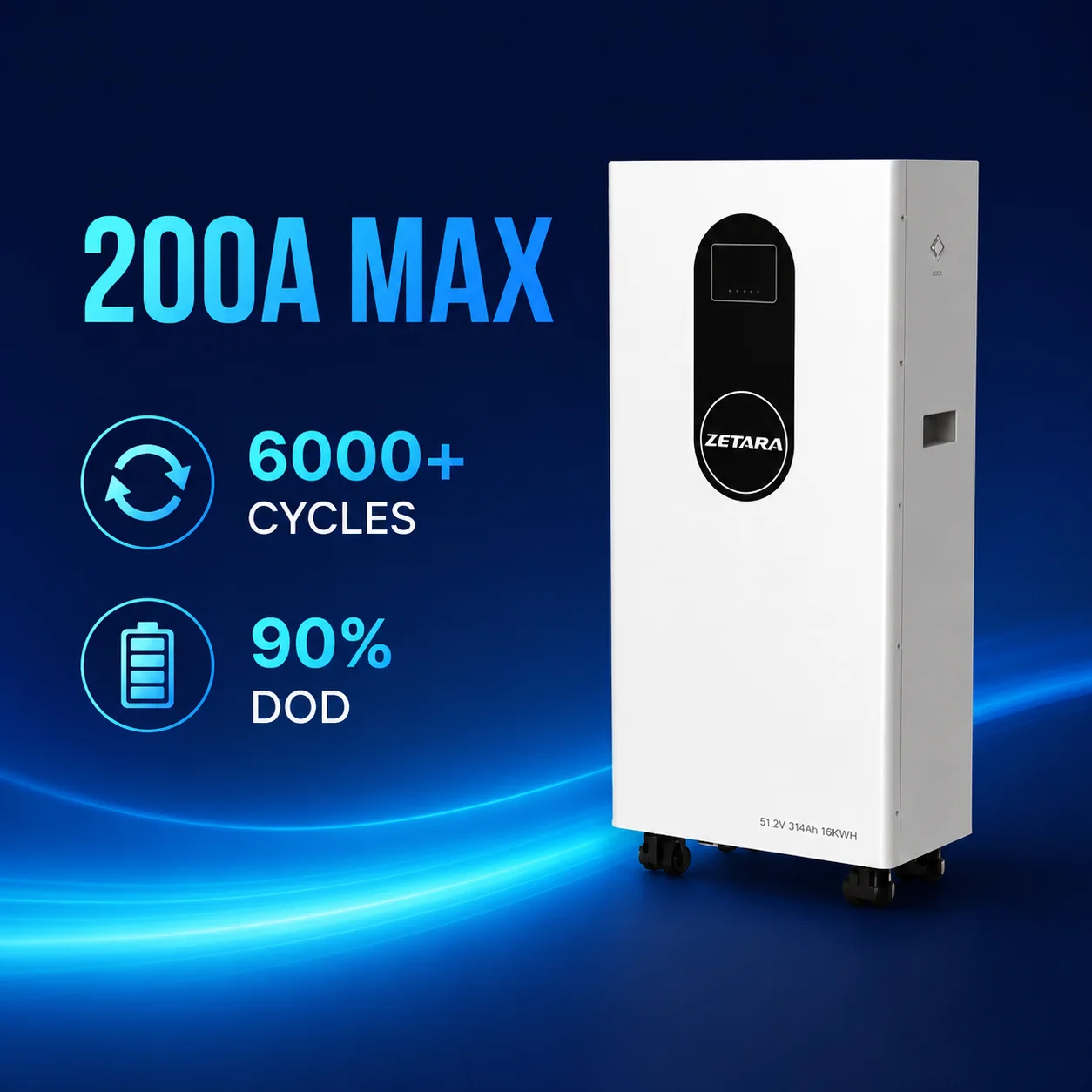

4.200A Continuous Current
Supports up to 200A continuous charging and discharging.
5.CAN & RS485 Communication
Enables communication with compatible hybrid solar inverters.
6.15+ Years Design Life
Designed for stable, long-term and maintenance-free operation.
product zetara 16kwh lifepo4 battery pack 512v 314ah real capacity grade a cells 16 units parallel support 256kwh max energy-3
Item
Specification
Model
ZRLVESS16KW
Battery Chemistry
LiFePO₄
Nominal Voltage
51.2V
Rated Capacity
314Ah
Nominal Energy
16.08kWh
Charging Voltage
56.0V–57.0V
Discharge Cut-Off Voltage
44.8V
Max. Continuous Charge Current
200A
Max. Continuous Discharge Current
200A
Recommended Charge Current
100A
Cycle Life
>6,000 Cycles, 0.5C, 90% DOD
Design Life
>15 Years
Communication
CAN / RS485
Charging Temperature
0°C to 50°C
Discharging Temperature
-20°C to 55°C
Storage Temperature
-20°C to 55°C
Dimensions
460 × 245 × 905mm
Weight
126kg
Installation

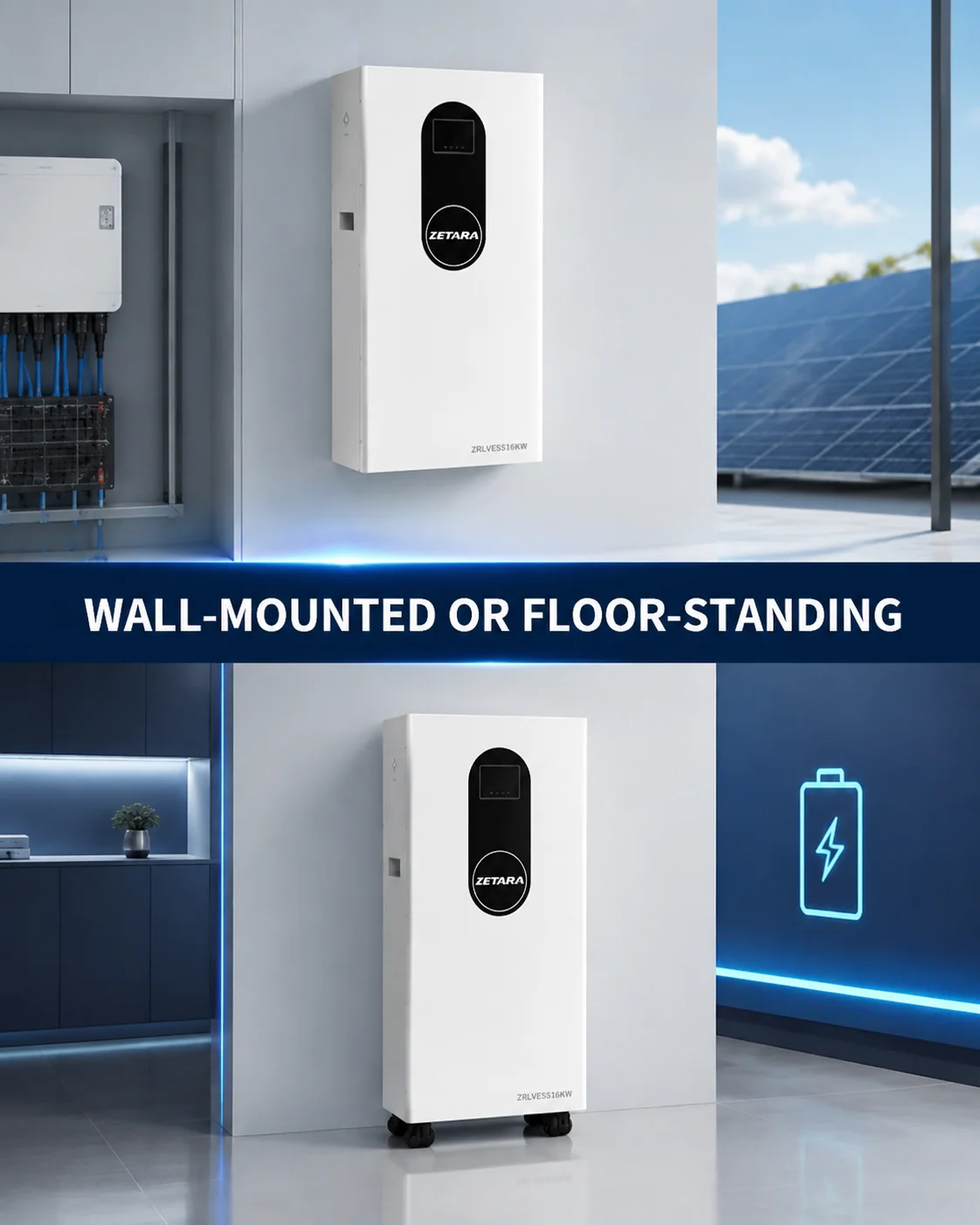

Floor-Standing / Wall-Mounted
product zetara 16kwh lifepo4 battery pack 512v 314ah real capacity grade a cells 16 units parallel support 256kwh max energy-4
product zetara 16kwh lifepo4 battery pack 512v 314ah real capacity grade a cells 16 units parallel support 256kwh max energy-5
product zetara 16kwh lifepo4 battery pack 512v 314ah real capacity grade a cells 16 units parallel support 256kwh max energy-6
product zetara 16kwh lifepo4 battery pack 512v 314ah real capacity grade a cells 16 units parallel support 256kwh max energy-7
product zetara 16kwh lifepo4 battery pack 512v 314ah real capacity grade a cells 16 units parallel support 256kwh max energy-8
product zetara 16kwh lifepo4 battery pack 512v 314ah real capacity grade a cells 16 units parallel support 256kwh max energy-9
product zetara 16kwh lifepo4 battery pack 512v 314ah real capacity grade a cells 16 units parallel support 256kwh max energy-10
Company Profile
SICHUAN GRANDTECH NEW ENERGY TECHNOLOGY CO. LTD. is a professional supplier of solar energy storage industry. We are engaged in manufacturing and marketing of high quality solar inverter and storage energy battery, with the certificates of IEC62619, UL1741(SA&SB),
UL1973,UL9540,UL9540A,ETL,ISO etc...
We are ability to make the fast delivery to our clients in USA and European countries as we have a warehouse in California and Poland.We strive to provide our clients with high quality products, good service, timely delivery and competitive prices and look forward to cooperating with you.
