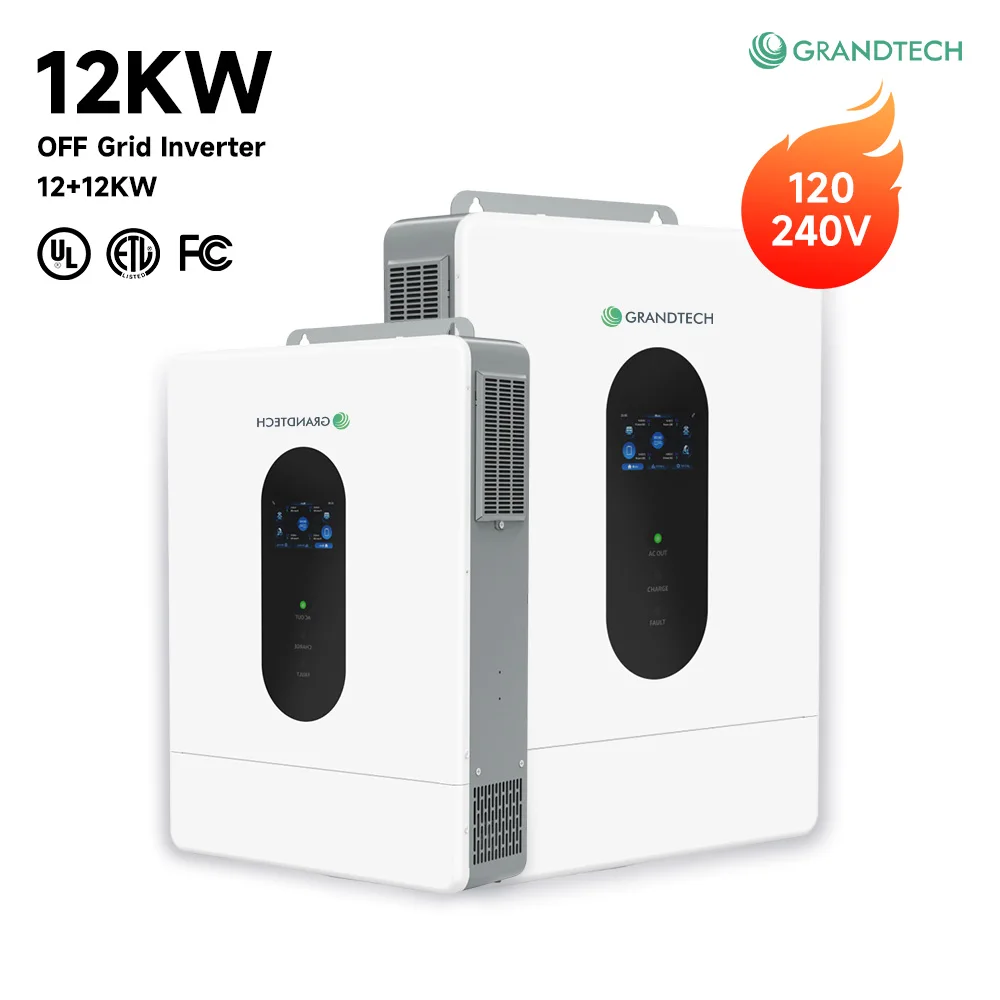

UL1741 12KW Pure Sine Wave Hybrid On/off Grid Inverter Solar12000W Hybrid Inverter 10KW 8KW 6KW With Wifi Mode
UL1741 12KW Pure Sine Wave Hybrid On/off Grid Inverter Solar12000W Hybrid Inverter 10KW 8KW 6KW With Wifi Mode
UL1741 12KW Pure Sine Wave Hybrid On/off Grid Inverter Solar12000W Hybrid Inverter 10KW 8KW 6KW With Wifi Mode
UL1741 12KW Pure Sine Wave Hybrid On/off Grid Inverter Solar12000W Hybrid Inverter 10KW 8KW 6KW With Wifi Mode
UL1741 12KW Pure Sine Wave Hybrid On/off Grid Inverter Solar12000W Hybrid Inverter 10KW 8KW 6KW With Wifi Mode
UL1741 12KW Pure Sine Wave Hybrid On/off Grid Inverter Solar12000W Hybrid Inverter 10KW 8KW 6KW With Wifi Mode
UL1741 12KW Pure Sine Wave Hybrid On/off Grid Inverter Solar12000W Hybrid Inverter 10KW 8KW 6KW With Wifi Mode
UL1741 12KW Pure Sine Wave Hybrid On/off Grid Inverter Solar12000W Hybrid Inverter 10KW 8KW 6KW With Wifi Mode
UL1741 12KW Pure Sine Wave Hybrid On/off Grid Inverter Solar12000W Hybrid Inverter 10KW 8KW 6KW With Wifi Mode
UL1741 12KW Pure Sine Wave Hybrid On/off Grid Inverter Solar12000W Hybrid Inverter 10KW 8KW 6KW With Wifi Mode
UL1741 12KW Pure Sine Wave Hybrid On/off Grid Inverter Solar12000W Hybrid Inverter 10KW 8KW 6KW With Wifi Mode
UL1741 12KW Pure Sine Wave Hybrid On/off Grid Inverter Solar12000W Hybrid Inverter 10KW 8KW 6KW With Wifi Mode

UL1741 12KW Pure Sine Wave Hybrid On/off Grid Inverter Solar12000W Hybrid Inverter 10KW 8KW 6KW With Wifi Mode

Get a Quote
Product Description
off grid inverter solar12000w hybrid inverter 10kw 8kw 6kw with wifi mode-2
The GES48120M250-500XP 12kW Hybrid Solar Inverter is designed for North American residential and light commercial solar energy storage systems. Featuring 120V/240V split-phase output, 48V battery compatibility, and dual MPPT technology, it maximizes solar energy utilization while delivering stable backup power during grid outages.
Whether you're building a new solar system or upgrading an existing installation, this inverter provides intelligent energy management, fast UPS switching, and flexible expansion for growing power demands.
off grid inverter solar12000w hybrid inverter 10kw 8kw 6kw with wifi mode-3
Powerful 12kW Split-Phase Performance
Designed for North American homes, this inverter delivers stable 120V/240V split-phase output, providing reliable power for heavy-duty household appliances such as HVAC systems, water heaters, pumps, and EV chargers.
-------------------------------------------------------------------------------------------------
Maximize Solar Energy with Dual MPPT
Featuring dual independent MPPT trackers and support for up to 18kW PV input, the inverter captures more solar energy throughout the day, improving efficiency even on complex rooftop installations.
-------------------------------------------------------------------------------------------------
Seamless Backup in Just 10ms
Experience uninterrupted power during outages with UPS-level switching in less than 10ms. Keep essential appliances runningsmoothly and protect sensitive electronics from unexpected interruptions.

Flexible Battery & Generator Integration
Compatible with both 48V lithium and lead-acid batteries, while supporting generator input for extended backup. Build a reliablehybrid energy system tailored to your needs.

-------------------------------------------------------------------------------------------------
Expand as Your Energy Needs Grow
Support for up to 6 units in parallel allows you to increase system capacity easily, making it ideal for larger homes, villas,farms, and light commercial applications.

-------------------------------------------------------------------------------------------------

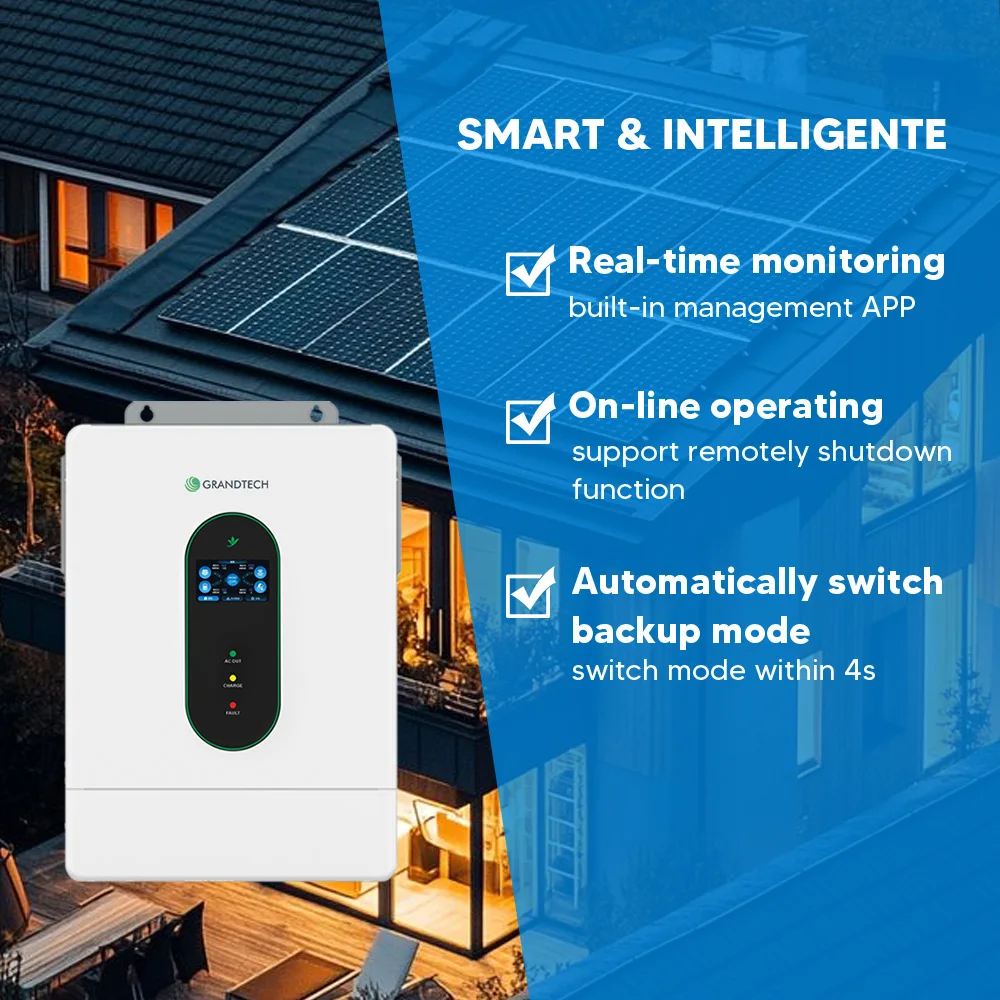

Intelligent Monitoring Anytime, Anywhere
Built-in WiFi enables real-time monitoring, remote diagnostics, and OTA firmware updates, giving you complete visibility and control over your solar energy system from anywhere.
Specification
Specification
GES48120M250-500XP
Permitted parallel number
1-6
AC mode
Rated input voltage
120(L1/N,L2/N)/240Vac(L1/L2)
Input phase voltage range
(85Vac~140Vac)±2%
Frequency
50Hz/60Hz(Auto detection)
Frequency Range
47±0.3Hz~55±0.3Hz(50Hz);57±0.3Hz~65±0.3Hz(60Hz);
Overload/short circuit protection
Circuit breaker
Efficiency
>95%
Conversion time (bypass and inverter)
10ms(typical)
Max.AC Input Current
2pole,185A/185A(L1/L2)
Maximum bypass phase overload current
2pole,185A/185A(L1/L2)
Inverter mode
Output voltage waveform
Pure sine wave
Rated output power (VA)
Split phase:12000
Single phase:7200(limited by the wiring terminals)
Rated output power(W)
Split phase:12000
Single phase:7200(limited by the wiring terminals)
Power factor
1
Rated output voltage (Vac)
120Vac(L1/N,L2/N)/240Vac(L1/L2)
Output voltage error
±5%
Output frequency range(Hz)
50Hz±0.3Hz/60Hz±0.3Hz
Maximum Efficiency
>91%
Overload protection
(105%(110%Load >125%±5%:report error and turn off the output after 5 seconds;
Peak power
Split phase:18000VA
Single phase:18000VA
Loaded motor capability
6HP
Output short circuit protection
Can protect,after continuous short circuit for 1 second
Bypass circuit breaker phase specification
2pole,63A/63A(L1/L2)
Rated battery input voltage
51.2V(Minimum starting voltage 44V)
Battery voltage range
40.0Vdc~58.6Vdc±0.6Vdc(Undervoltage alarm/shutdown voltage/overvoltage
alarm /overvoltage recovery...settable on LCD screen)
Power saving mode self-consump tion
Load per phase is null or less than 25W enter power-saving mode
Battery type
Lead acid or lithium battery
Maximum charge current(can be set)
160A
Charge current error
±5Adc
Charge voltage range
40-58.6Vdc
Short circuit protection
Circuit breaker
Circuit breaker phase specifications
2pole,63A/63A(L1/L2)
PV charging
Number of MPPT groups
2
Maximum PV open circuit voltage
500Vdc
PV operating voltage range
90Vdc~485Vdc
MPPT voltage range
90Vdc~450Vdc
Battery voltage range
40-58.6Vdc
Maximum PV input power
12000W+12000W
Maximum PVinput current
32A+32A
PV charge current(can be set)
250A
Charging short circuit protection
Can protect,software immediately protects
Wiring protection
Reverse polarity protection
Hybrid charging Max charger current specificat
ions(AC charger+PV charger)
Max charger current(can be set)
0-250A
off grid inverter solar12000w hybrid inverter 10kw 8kw 6kw with wifi mode-4
off grid inverter solar12000w hybrid inverter 10kw 8kw 6kw with wifi mode-5
off grid inverter solar12000w hybrid inverter 10kw 8kw 6kw with wifi mode-6
off grid inverter solar12000w hybrid inverter 10kw 8kw 6kw with wifi mode-7
off grid inverter solar12000w hybrid inverter 10kw 8kw 6kw with wifi mode-8
off grid inverter solar12000w hybrid inverter 10kw 8kw 6kw with wifi mode-9
off grid inverter solar12000w hybrid inverter 10kw 8kw 6kw with wifi mode-10
off grid inverter solar12000w hybrid inverter 10kw 8kw 6kw with wifi mode-11
off grid inverter solar12000w hybrid inverter 10kw 8kw 6kw with wifi mode-12
off grid inverter solar12000w hybrid inverter 10kw 8kw 6kw with wifi mode-13
off grid inverter solar12000w hybrid inverter 10kw 8kw 6kw with wifi mode-14
off grid inverter solar12000w hybrid inverter 10kw 8kw 6kw with wifi mode-15
off grid inverter solar12000w hybrid inverter 10kw 8kw 6kw with wifi mode-16
off grid inverter solar12000w hybrid inverter 10kw 8kw 6kw with wifi mode-17
Recommend Products
Company Profile
off grid inverter solar12000w hybrid inverter 10kw 8kw 6kw with wifi mode-18
off grid inverter solar12000w hybrid inverter 10kw 8kw 6kw with wifi mode-19
off grid inverter solar12000w hybrid inverter 10kw 8kw 6kw with wifi mode-20
FAQ
Q1: Is this inverter UL certified?
Yes. This 12kW inverter is UL certified for the U.S. and Canadian markets.
Q2: Do you have stock in the USA?
Yes. We have ready stock in U.S. warehouses for fast delivery.
Q3: What output does it provide?
120/240V split-phase, 60Hz, suitable for North American power systems.
Q4: Can it run air conditioners, pumps, and motors?
Yes. It supports high surge power for motor loads, making it ideal for air conditioners, refrigerators, water pumps, compressors,and power tools.
Q5: What batteries are compatible?
48V / 51.2V LiFePO₄ lithium batteries are recommended.
Q6: Does it support solar and grid connection?
Yes. It supports solar, battery, and grid (hybrid models) for off-grid, backup, or commercial applications.
Q7: Can multiple units be connected in parallel?
Yes. Up to 6 units can be connected in parallel, reaching a maximum combined output of 72kW.
