Products Description

Specification

Model	HESP4840U120-HJP	HESP4850U120-HJP	HESP4860U140-HJP	HESP4865U140-HJP
AC OUTPUT(LOAD)
Rated Output Power	4000W	5000W	6000W	6500W
Single-phase Unbalanced Load	4000W	4500W	4500W	4500W
Max.Peak Power	2×rated power for 10 seconds				1.8×Rated Power

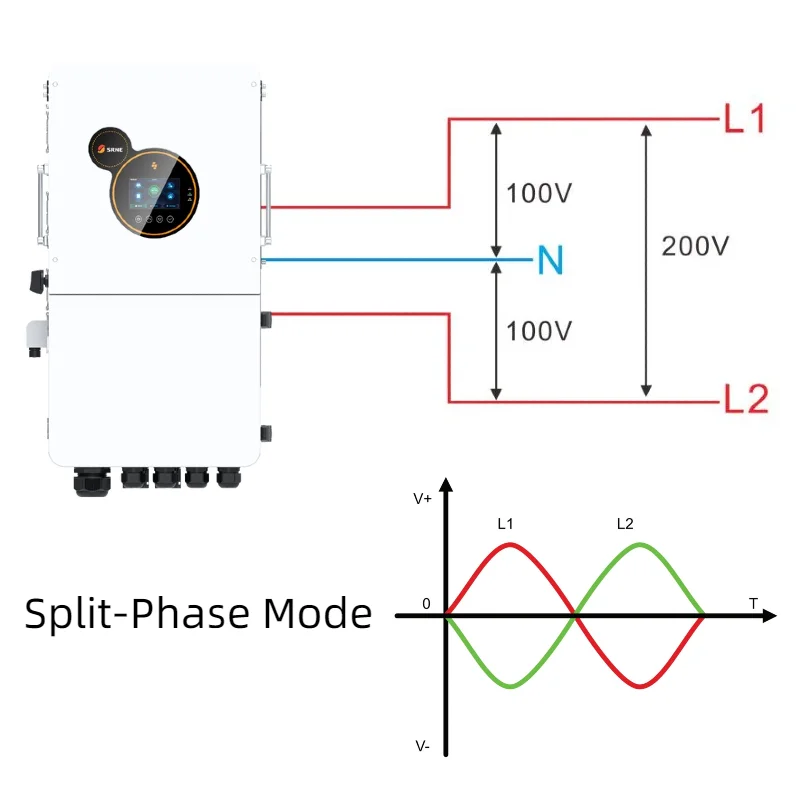

Rated Output Voltage	100/200Vac(Split-phase);100/173V(Three-phase)
Rated Output Current	20A @200V 23A @173V	25A @200V 28.9A @173V	30A @200V 34.7A @173V	32.5A @200V 37.5A @173V
Rated Frequency	50/60Hz
Waveform	Pure sine wave
AC OUTPUT(GRID)
Rated Output Power	4000W	5000W	6000W	6500W
Max.Apparent Power	4400VA	5500VA	6600VA	7000VA
Rated Output Current	20A @200V 23A @173V	25A @200V 28.9A @173V	30A @200V 34.7A @173V	32.5A @200V 37.5A @173V
Power Factor	0.99(0.8 Leading/0.8 Lagging)
THDI	<3%
BATTERY
Battery Type	Lithium-ion Battery/Lead-acid Battery /User-defined
Rated Battery Voltage	48Vdc
Battery Voltage Range	40～60Vdc
Max.Grid Charging Current	120A	120A	140A	140A
Max.Generator Charging Current	120A	120A	140A	140A
Max.Hybrid Charging Current	120A	120A	140A	140A
PV INPUT
No.of MPPT Trackers	2
Max.PV Input Power	6000W/6000W
Max.PV Input Current	32A/32A
Max.Open Circuit Voltage	600V/600V
MPPT Operating Voltage Range	120～500Vdc
GRID/GENERATOR INPUT
Rated Input Phase Voltage	100Vac
Input Phase Voltage Range	65～140Vac
Input Frequency Range	50/60Hz
Bypass Phase Current	60A
