Smart BMS Lithium Ion Battery All in One 30kw 40kw 51.2v 200ah 280ah 300ah 400ah 500ah 600ah 48v Lifepo4 Battery
Smart BMS Lithium Ion Battery All in One 30kw 40kw 51.2v 200ah 280ah 300ah 400ah 500ah 600ah 48v Lifepo4 Battery
Smart BMS Lithium Ion Battery All in One 30kw 40kw 51.2v 200ah 280ah 300ah 400ah 500ah 600ah 48v Lifepo4 Battery
Smart BMS Lithium Ion Battery All in One 30kw 40kw 51.2v 200ah 280ah 300ah 400ah 500ah 600ah 48v Lifepo4 Battery
Smart BMS Lithium Ion Battery All in One 30kw 40kw 51.2v 200ah 280ah 300ah 400ah 500ah 600ah 48v Lifepo4 Battery
Smart BMS Lithium Ion Battery All in One 30kw 40kw 51.2v 200ah 280ah 300ah 400ah 500ah 600ah 48v Lifepo4 Battery
Smart BMS Lithium Ion Battery All in One 30kw 40kw 51.2v 200ah 280ah 300ah 400ah 500ah 600ah 48v Lifepo4 Battery
Smart BMS Lithium Ion Battery All in One 30kw 40kw 51.2v 200ah 280ah 300ah 400ah 500ah 600ah 48v Lifepo4 Battery
Smart BMS Lithium Ion Battery All in One 30kw 40kw 51.2v 200ah 280ah 300ah 400ah 500ah 600ah 48v Lifepo4 Battery
Smart BMS Lithium Ion Battery All in One 30kw 40kw 51.2v 200ah 280ah 300ah 400ah 500ah 600ah 48v Lifepo4 Battery
Smart BMS Lithium Ion Battery All in One 30kw 40kw 51.2v 200ah 280ah 300ah 400ah 500ah 600ah 48v Lifepo4 Battery
Smart BMS Lithium Ion Battery All in One 30kw 40kw 51.2v 200ah 280ah 300ah 400ah 500ah 600ah 48v Lifepo4 Battery

Smart BMS Lithium Ion Battery All in One 30kw 40kw 51.2v 200ah 280ah 300ah 400ah 500ah 600ah 48v Lifepo4 Battery

Get a Quote
Product Description
Products Description
product smart bms lithium ion battery all in one 30kw 40kw 512v 200ah 280ah 300ah 400ah 500ah 600ah 48v lifepo4 battery-1
The GT-FL15KW Residential Energy Storage Series is a low-voltage lithium battery module developed by Grandtech, specifically designed for residential energy storage applications. The module enables high-precision monitoring of multi-cell voltage and temperature, ensuring reliable and efficient system performance.
product smart bms lithium ion battery all in one 30kw 40kw 512v 200ah 280ah 300ah 400ah 500ah 600ah 48v lifepo4 battery-2

Home Energy Storage Battery – Key Highlights

*10-Year Warranty – Long-term reliability
*6,000+ Cycles @90% DOD – Extended battery life
*Supports16 Units in Parallel– Scalable up to 163kWh
*Compatible with All 48V Hybrid Inverters
*Built-inIndependent BMS– Smart protection & control
*Modular & Maintenance-Free – Easy to install and expand
*No Memory Effect – Consistent performance over time

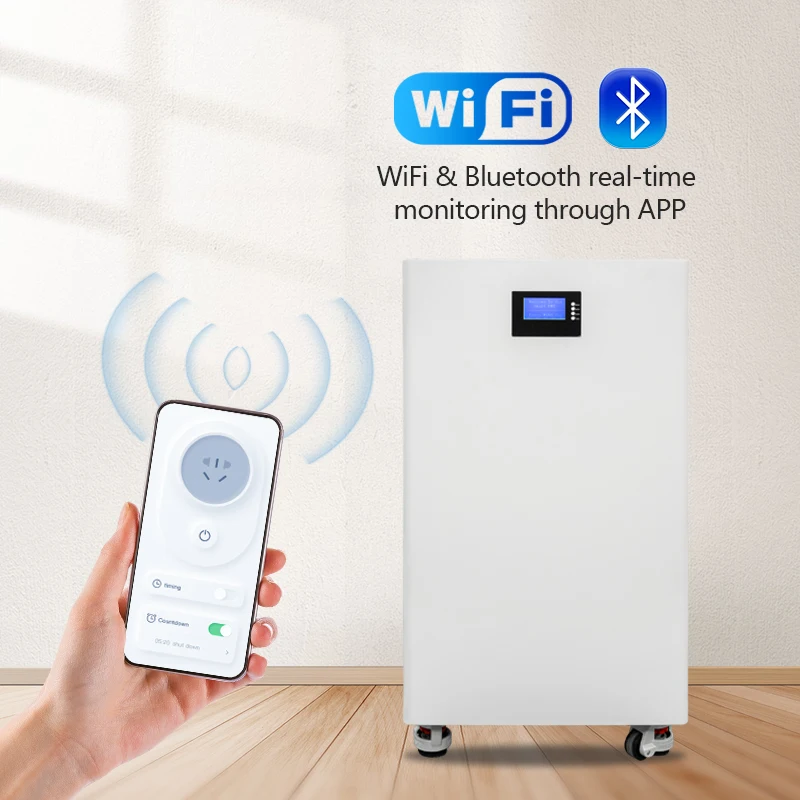

*CAN/RS485 Bluetooth communication
Specification
product smart bms lithium ion battery all in one 30kw 40kw 512v 200ah 280ah 300ah 400ah 500ah 600ah 48v lifepo4 battery-3
product smart bms lithium ion battery all in one 30kw 40kw 512v 200ah 280ah 300ah 400ah 500ah 600ah 48v lifepo4 battery-4
Model
GT-FL15KW
Nominal voltage
51.2V
Nominal capacity
280A h/14336Wh
Cell type
LiFePO4
Charging cut-off voltage
57.6V
Discharge cut-off voltage
43.2V
Max-continuous discharge current
200A
Instantaneous discharge current
400A
Display
LCD or touchscreen display screen
Standard charging current
<100A
Standard discharge current
100A
Storage temperature
0℃ ~60℃
Operating temperature
﹣20℃ ~60℃
Design life
10 Years
Cycle life
>6000 90%DOD
Battery pack size
500*260*932mm
Battery pack N.W./G.W.
135kg/157kg
Communication interface
CAN/RS232/RS485
Cooling method
Air cooling/active balancing
product smart bms lithium ion battery all in one 30kw 40kw 512v 200ah 280ah 300ah 400ah 500ah 600ah 48v lifepo4 battery-5
product smart bms lithium ion battery all in one 30kw 40kw 512v 200ah 280ah 300ah 400ah 500ah 600ah 48v lifepo4 battery-6
product smart bms lithium ion battery all in one 30kw 40kw 512v 200ah 280ah 300ah 400ah 500ah 600ah 48v lifepo4 battery-7
product smart bms lithium ion battery all in one 30kw 40kw 512v 200ah 280ah 300ah 400ah 500ah 600ah 48v lifepo4 battery-8
product smart bms lithium ion battery all in one 30kw 40kw 512v 200ah 280ah 300ah 400ah 500ah 600ah 48v lifepo4 battery-9
product smart bms lithium ion battery all in one 30kw 40kw 512v 200ah 280ah 300ah 400ah 500ah 600ah 48v lifepo4 battery-10
product smart bms lithium ion battery all in one 30kw 40kw 512v 200ah 280ah 300ah 400ah 500ah 600ah 48v lifepo4 battery-11
product smart bms lithium ion battery all in one 30kw 40kw 512v 200ah 280ah 300ah 400ah 500ah 600ah 48v lifepo4 battery-12
