LV Home Battery 48V 314Ah 16KWh LiFePO4 BMS Solar Panels with Battery and Inverter Cost of Lithium Batteries for Solar System, China LV Home Battery 48V 314Ah 16KWh LiFePO4 BMS Solar Panels with Battery and Inverter Cost of Lithium Batteries for Solar System Manufacturers, Suppliers, Factory - Sichuan Grantech New Energy Technology Co.,Ltd.

Product Description

product lv home battery 48v 314ah 16kwh lifepo4 bms solar panels with battery and inverter cost of lithium batteries for solar system-2

Products Description

product lv home battery 48v 314ah 16kwh lifepo4 bms solar panels with battery and inverter cost of lithium batteries for solar system-3

product lv home battery 48v 314ah 16kwh lifepo4 bms solar panels with battery and inverter cost of lithium batteries for solar system-4

Advantages:

No Maintenance Required: Designed for hassle-free operation, with a modular setup that makes installation and future capacity expansion easy.
Extended Lifespan: Offers up to 6,500 charge cycles, ensuring long-term durability and value.
Integrated Smart BMS: Equipped with advanced Battery Management System, providing multiple layers of protection and communication features for efficient monitoring and control.
Wide Temperature Tolerance: Performs reliably across a broad range of temperatures, ensuring dependable operation in various environments.

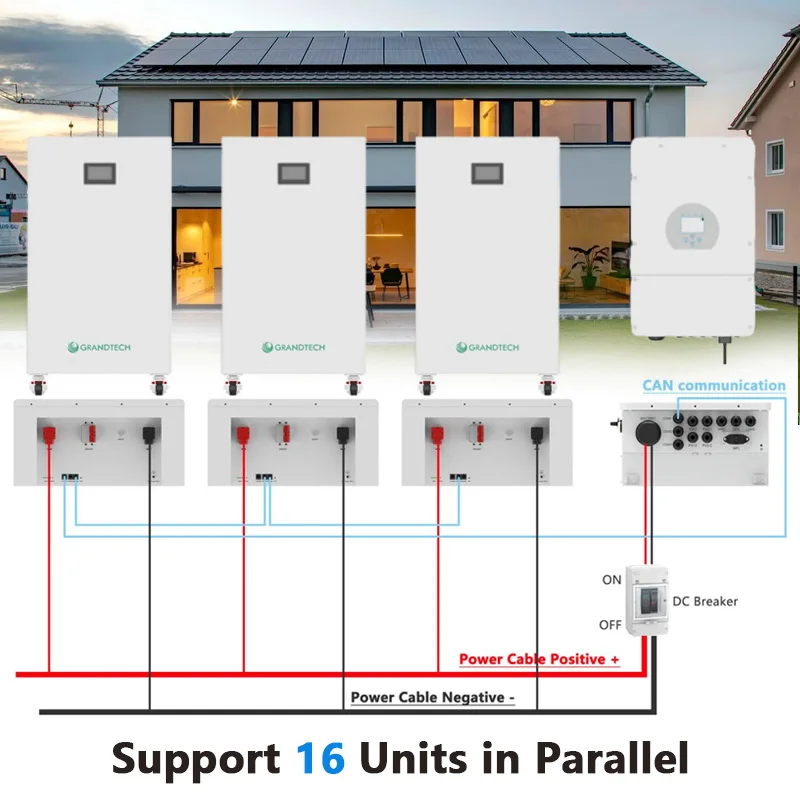

Scalable Storage: Multiple units can be connected in parallel to meet high energy storage demands, making it suitable for expanding systems.
Universal Compatibility: Works seamlessly with various charge controllers and inverters for easy integration into different systems.
Versatile Applications: Ideal for off-grid solar storage, backup power for telecom systems, and central data centers,among other uses.

Specification

Model No	GSL-W-A16K
Nominal Parameters
Battery Chemistry	LiFePO4
Voltage	51.2V
Capacity	314Ah
Energy	16.08kWh
Dimension(W/H/D)	550982280mm/21.638.611.0 in
Weight Approximate	135kgs/298 Ibs
Basic Parameters
Warranty Period [3]	5 years
Cycle Life(25±2℃,0.5C/0.5C,80%EOL)	≥6500
Storage Time /Temperature	5 months @25℃;3 months @35℃;1 month @45℃
Operation Temperature	-20℃ to 60℃@60+/-25%Relative Humidity
Storage Temperature	0℃ to 45℃@60+/-25%Relative Humidity
Certification	CE,UN38.3,MSDS
IP Rating of Enclosur	IP20
Electrical Parameters
Operation Voltage	46-56Vdc
Max.Charging Voltage	56Vdc
Max.Charging Current	150A
Max.Discharging Current	150A

product lv home battery 48v 314ah 16kwh lifepo4 bms solar panels with battery and inverter cost of lithium batteries for solar system-5

product lv home battery 48v 314ah 16kwh lifepo4 bms solar panels with battery and inverter cost of lithium batteries for solar system-6

product lv home battery 48v 314ah 16kwh lifepo4 bms solar panels with battery and inverter cost of lithium batteries for solar system-7

product lv home battery 48v 314ah 16kwh lifepo4 bms solar panels with battery and inverter cost of lithium batteries for solar system-8

product lv home battery 48v 314ah 16kwh lifepo4 bms solar panels with battery and inverter cost of lithium batteries for solar system-9

product lv home battery 48v 314ah 16kwh lifepo4 bms solar panels with battery and inverter cost of lithium batteries for solar system-10

product lv home battery 48v 314ah 16kwh lifepo4 bms solar panels with battery and inverter cost of lithium batteries for solar system-11

product lv home battery 48v 314ah 16kwh lifepo4 bms solar panels with battery and inverter cost of lithium batteries for solar system-12

product lv home battery 48v 314ah 16kwh lifepo4 bms solar panels with battery and inverter cost of lithium batteries for solar system-13

product lv home battery 48v 314ah 16kwh lifepo4 bms solar panels with battery and inverter cost of lithium batteries for solar system-14

product lv home battery 48v 314ah 16kwh lifepo4 bms solar panels with battery and inverter cost of lithium batteries for solar system-15

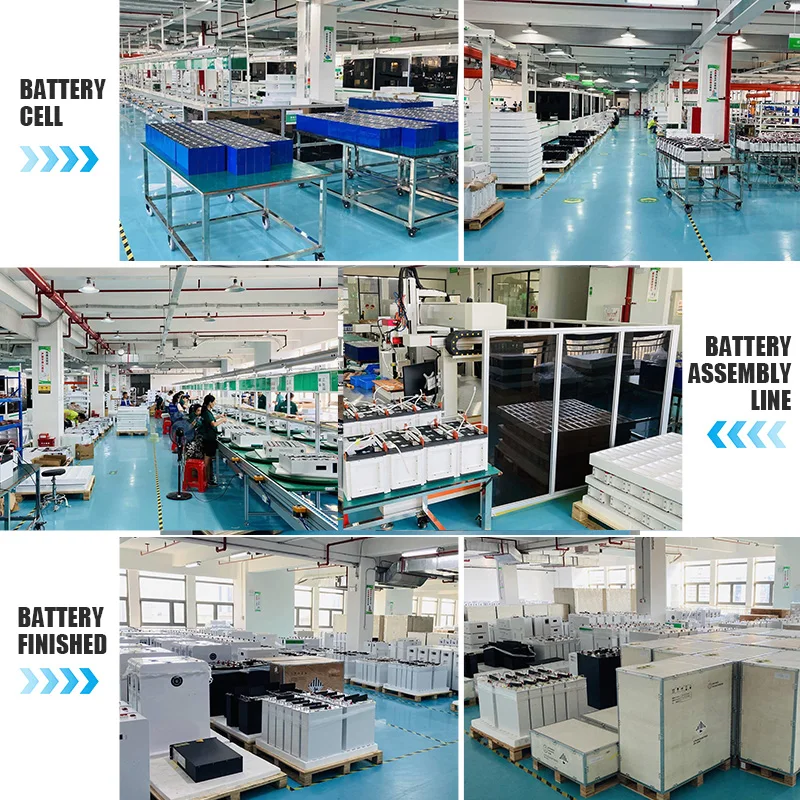

Company Profile

SICHUAN GRANDTECH NEW ENERGY TECHNOLOGY CO. LTD. is a professional supplier of solar energy storage industry. We are engaged in manufacturing and marketing of high quality solar inverter and storage energy battery, with the certificates of IEC62619,

UL1741(SA&SB),UL1973,UL9540,UL9540A,ETL,ISO etc...

We are ability to make the fast delivery to our clients in USA and European countries as we have a warehouse in California and Poland.We strive to provide our clients with high quality products, good service, timely delivery and competitive prices and look forward to cooperating with you.
