Long Life 15 Years 16kWh Energy Storage Battery 51.2V 314Ah Wall Mounted LiFePO4 Battery Pack for Home Power Backup System
Long Life 15 Years 16kWh Energy Storage Battery 51.2V 314Ah Wall Mounted LiFePO4 Battery Pack for Home Power Backup System
Long Life 15 Years 16kWh Energy Storage Battery 51.2V 314Ah Wall Mounted LiFePO4 Battery Pack for Home Power Backup System
Long Life 15 Years 16kWh Energy Storage Battery 51.2V 314Ah Wall Mounted LiFePO4 Battery Pack for Home Power Backup System
Long Life 15 Years 16kWh Energy Storage Battery 51.2V 314Ah Wall Mounted LiFePO4 Battery Pack for Home Power Backup System
Long Life 15 Years 16kWh Energy Storage Battery 51.2V 314Ah Wall Mounted LiFePO4 Battery Pack for Home Power Backup System
Long Life 15 Years 16kWh Energy Storage Battery 51.2V 314Ah Wall Mounted LiFePO4 Battery Pack for Home Power Backup System
Long Life 15 Years 16kWh Energy Storage Battery 51.2V 314Ah Wall Mounted LiFePO4 Battery Pack for Home Power Backup System
Long Life 15 Years 16kWh Energy Storage Battery 51.2V 314Ah Wall Mounted LiFePO4 Battery Pack for Home Power Backup System
Long Life 15 Years 16kWh Energy Storage Battery 51.2V 314Ah Wall Mounted LiFePO4 Battery Pack for Home Power Backup System
Long Life 15 Years 16kWh Energy Storage Battery 51.2V 314Ah Wall Mounted LiFePO4 Battery Pack for Home Power Backup System
Long Life 15 Years 16kWh Energy Storage Battery 51.2V 314Ah Wall Mounted LiFePO4 Battery Pack for Home Power Backup System

Long Life 15 Years 16kWh Energy Storage Battery 51.2V 314Ah Wall Mounted LiFePO4 Battery Pack for Home Power Backup System

Get a Quote
Product Description
Products Description
The ZETARA ZRLVESS16KW is a 51.2V 314Ah LiFePO4 battery module with 16.08kWh nominal energy, designed for residential solar energy storage, backup power and off-grid power systems. It features an intelligent built-in BMS that monitors voltage, current, temperature, SOC and operating status while providing comprehensive battery protection.
With excellent safety, long cycle life, high energy density, a wide operating temperature range and maintenance-free performance,the ZRLVESS16KW provides a reliable and environmentally responsible energy storage solution. CAN and RS485 communication interfaces enable integration with compatible solar inverters, while its floor-standing and wall-mounted design supports flexible installation in homes, garages, utility rooms and small commercial energy storage projects.
product long life 15 years 16kwh energy storage battery 512v 314ah wall mounted lifepo4 battery pack for home power backup system-2
1.16.08kWh High Capacity
Provides reliable energy storage for home backup and solar systems.

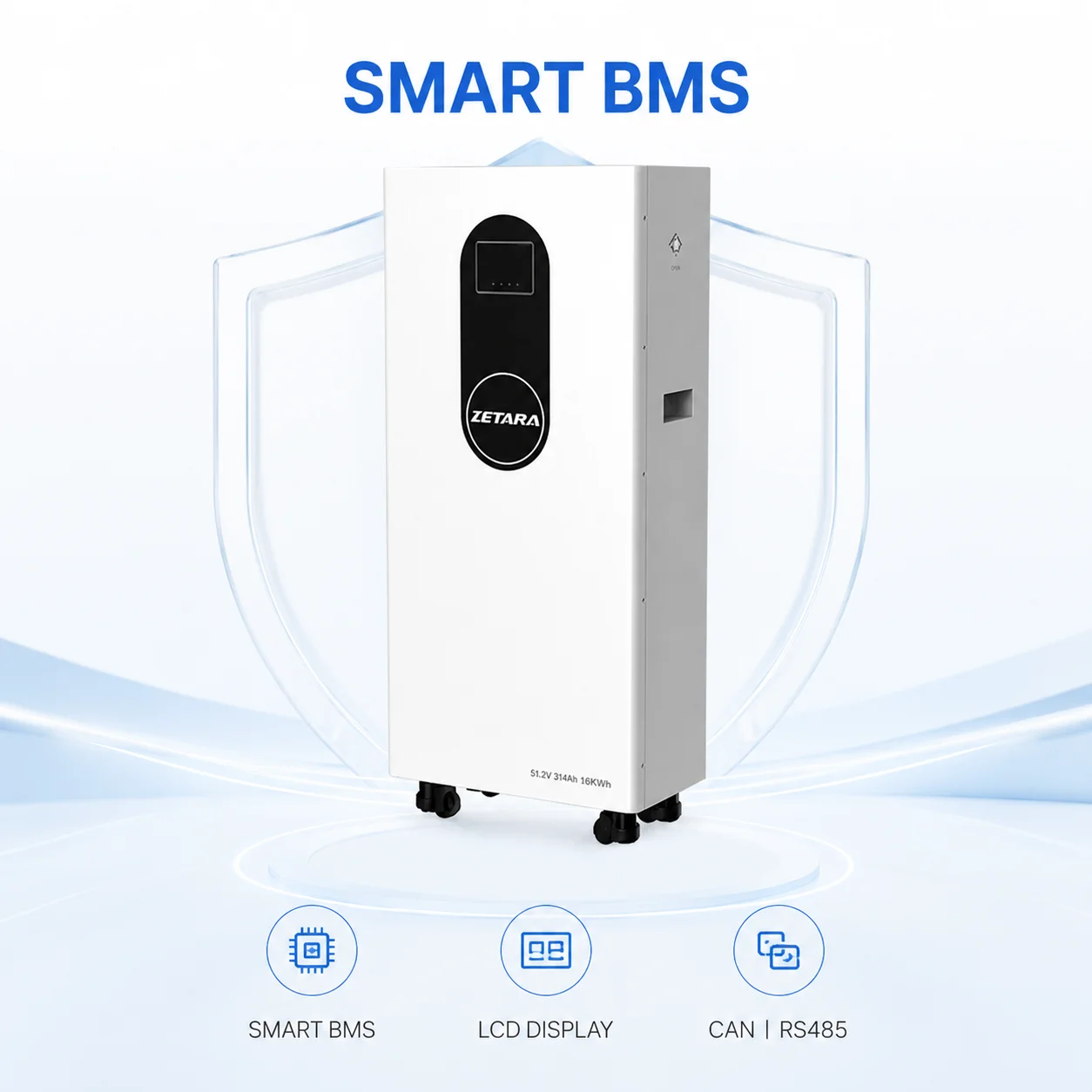

2.Intelligent Built-In BMS
Monitors voltage, current, temperature, SOC and battery status.
3.More Than 6,000 Cycles
Long-lasting LiFePO4 performance at 0.5C and 90% DOD.
4.200A Continuous Current
Supports up to 200A continuous charging and discharging.
5.CAN & RS485 Communication
Enables communication with compatible hybrid solar inverters.
6.15+ Years Design Life
Designed for stable, long-term and maintenance-free operation.
product long life 15 years 16kwh energy storage battery 512v 314ah wall mounted lifepo4 battery pack for home power backup system-3
Item
Specification
Model
ZRLVESS16KW
Battery Chemistry
LiFePO₄
Nominal Voltage
51.2V
Rated Capacity
314Ah
Nominal Energy
16.08kWh
Charging Voltage
56.0V–57.0V
Discharge Cut-Off Voltage
44.8V
Max. Continuous Charge Current
200A
Max. Continuous Discharge Current
200A
Recommended Charge Current
100A
Cycle Life
>6,000 Cycles, 0.5C, 90% DOD
Design Life
>15 Years
Communication
CAN / RS485
Charging Temperature
0°C to 50°C
Discharging Temperature
-20°C to 55°C
Storage Temperature
-20°C to 55°C

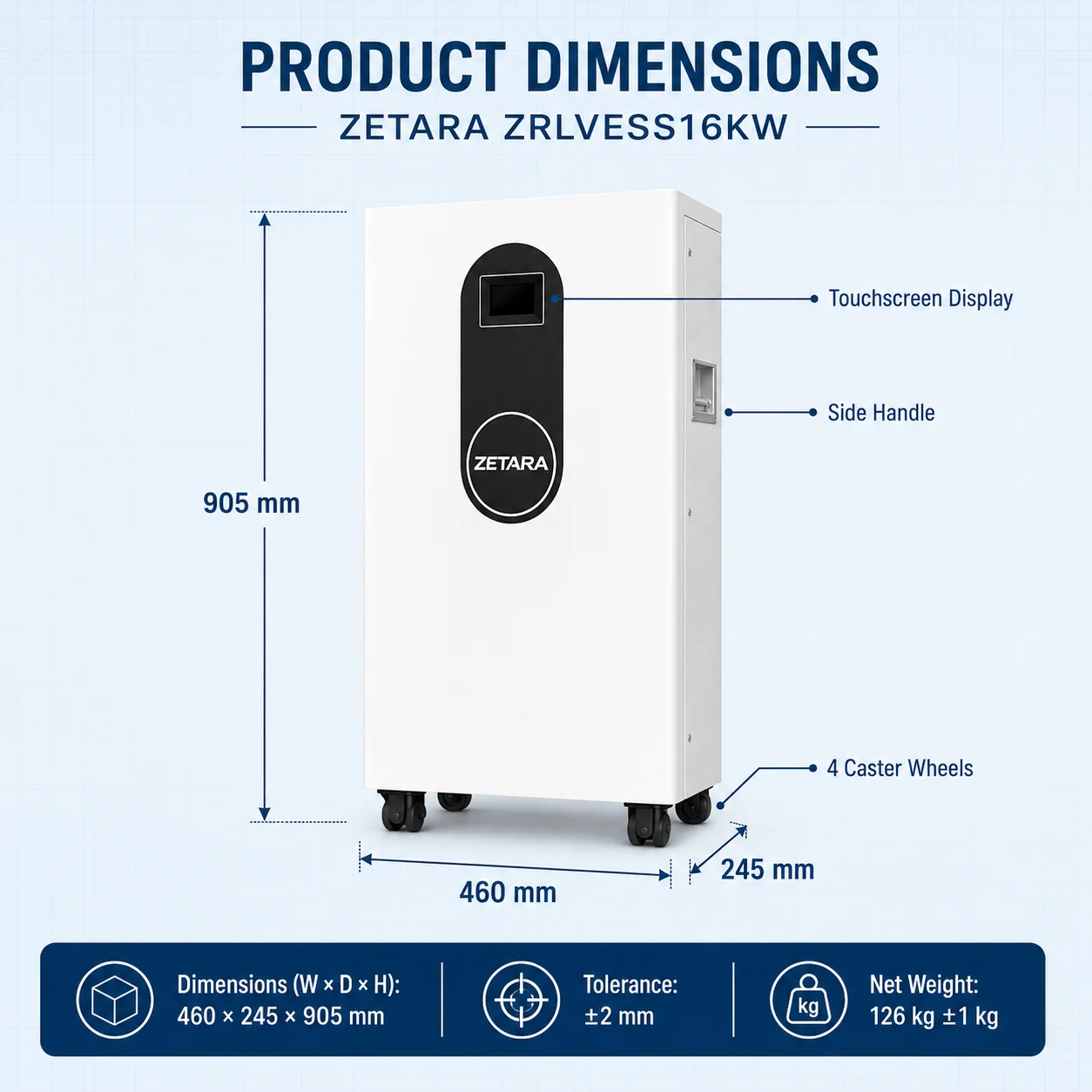

Dimensions
460 × 245 × 905mm
Weight
126kg

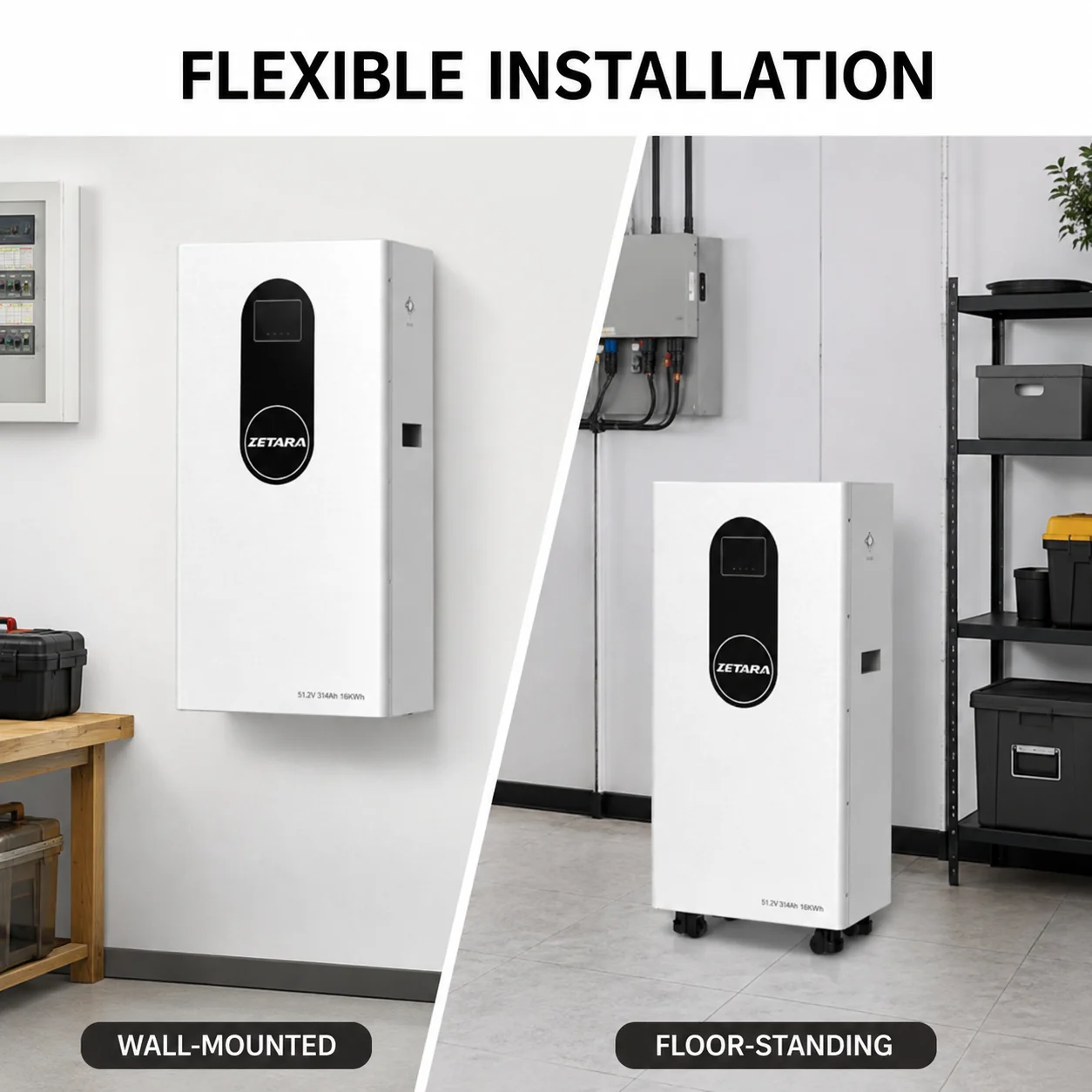

Installation
Floor-Standing / Wall-Mounted
product long life 15 years 16kwh energy storage battery 512v 314ah wall mounted lifepo4 battery pack for home power backup system-4
product long life 15 years 16kwh energy storage battery 512v 314ah wall mounted lifepo4 battery pack for home power backup system-5
product long life 15 years 16kwh energy storage battery 512v 314ah wall mounted lifepo4 battery pack for home power backup system-6
product long life 15 years 16kwh energy storage battery 512v 314ah wall mounted lifepo4 battery pack for home power backup system-7
product long life 15 years 16kwh energy storage battery 512v 314ah wall mounted lifepo4 battery pack for home power backup system-8
product long life 15 years 16kwh energy storage battery 512v 314ah wall mounted lifepo4 battery pack for home power backup system-9
product long life 15 years 16kwh energy storage battery 512v 314ah wall mounted lifepo4 battery pack for home power backup system-10
Company Profile
SICHUAN GRANDTECH NEW ENERGY TECHNOLOGY CO. LTD. is a professional supplier of solar energy storage industry. We are engaged in manufacturing and marketing of high quality solar inverter and storage energy battery, with the certificates of IEC62619, UL1741(SA&SB),
UL1973,UL9540,UL9540A,ETL,ISO etc...
We are ability to make the fast delivery to our clients in USA and European countries as we have a warehouse in California and Poland.We strive to provide our clients with high quality products, good service, timely delivery and competitive prices and look forward to cooperating with you.
