Product Description

Products Description

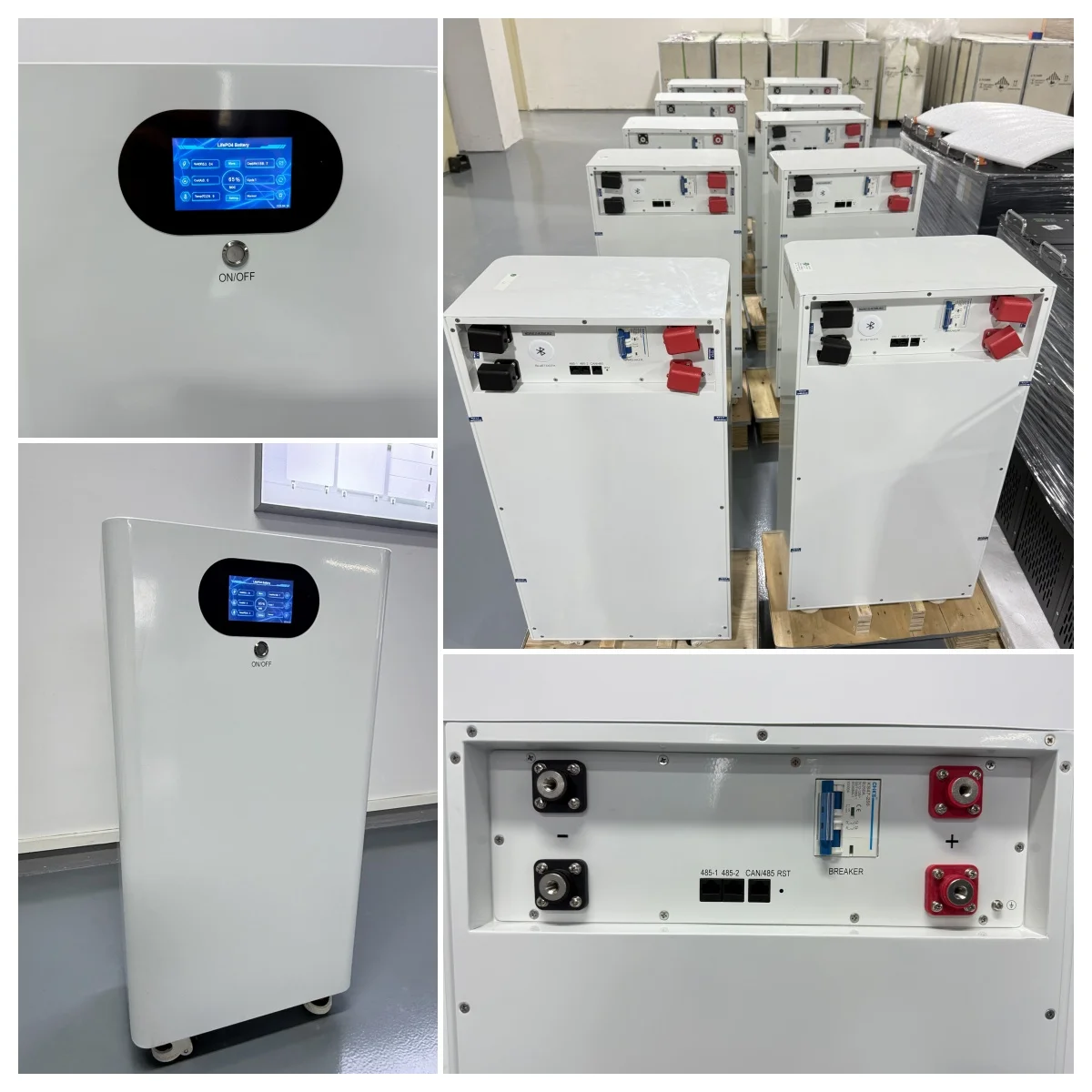

product grandtech 48v 560ah 600ah 628ah lifepo4 lithium ion battery pack 15kwh 20kwh 30kwh home energy storage system-2

Advantages:

No Maintenance Required: Designed for hassle-free operation, with a modular setup that makes installation and future capacity expansion easy.
Extended Lifespan: Offers up to 6,000 charge cycles, ensuring long-term durability and value.
Integrated Smart BMS: Equipped with advanced Battery Management System, providing multiple layers of protection and communication features for efficient monitoring and control.
Wide Temperature Tolerance: Performs reliably across a broad range of temperatures, ensuring dependable operation in various environments.
Scalable Storage: Multiple units can be connected in parallel to meet high energy storage demands, making it suitable for expanding systems.
Universal Compatibility: Works seamlessly with various charge controllers and inverters for easy integration into different systems.
Versatile Applications: Ideal for off-grid solar storage, backup power for telecom systems, and central data centers,among other uses.

product grandtech 48v 560ah 600ah 628ah lifepo4 lithium ion battery pack 15kwh 20kwh 30kwh home energy storage system-3

product grandtech 48v 560ah 600ah 628ah lifepo4 lithium ion battery pack 15kwh 20kwh 30kwh home energy storage system-4

Specification

Model No.	BAT- ST48/51280A-A1 ST48/51300A-A1 ST48/51314A-A1			BAT- ST48/51350A-A1	BAT- ST48/51400A-A1	BAT- ST48/51560A-A1 ST48/51600A-A1 ST48/51628A-A1
Voltage	48Vdc/51.2Vdc
Capacity	280Ah/300Ah/314Ah			350Ah	400Ah	560Ah/600Ah/628Ah
Energy	13.44KWh/ 14.336KWh 14.4KWh/ 15.36KWh 15KWh/ 16KWh			16.8KWh/ 17.92KWh	19.2KWh/20.4KWh	26.88KWh28.67KWh 28.8KWh/30.72KWh 30. 1KWh/3215KWh
Max. Chg voltage	54.75V/58.4V
Cut-off Dsg voltage	39.0V/42.0V
Stand. Chg current	100A	150A	100A	100A	100A
Max. Chg current	200A	200A	200A	200A	200A
Stand. Dsg current	100A	100A	100A	100A	100A
Max. Dsg current	200A	200A	200A	200A	200A
Peak Dsg current	300A	300A	300A	300A	300A
Protections	OVP/UVP/OCP/OTP/UTP/SCP etc.
Communication	RS485/CAN/BT（ optional）
Work temperature	Charge: 0℃~50℃ Discharge: -15℃~60℃
Storage temperature	0℃~45℃ @ 60±20% Relative Humidity
Protection grade	IP20
Dimensions(LWH)	420230830mm			575224786mm	509293983mm	4603801000mm
Weight	113kg-114kg			124kg	147kg	228Kg

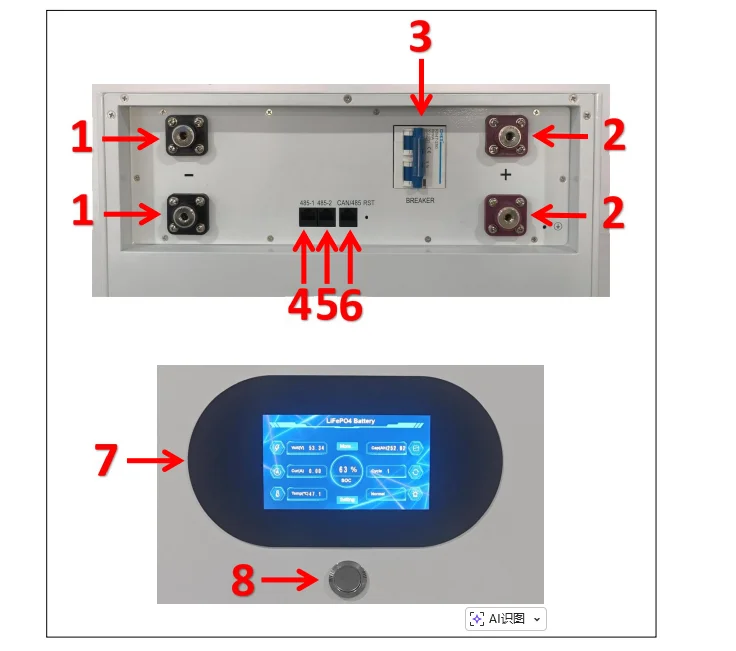

product grandtech 48v 560ah 600ah 628ah lifepo4 lithium ion battery pack 15kwh 20kwh 30kwh home energy storage system-5

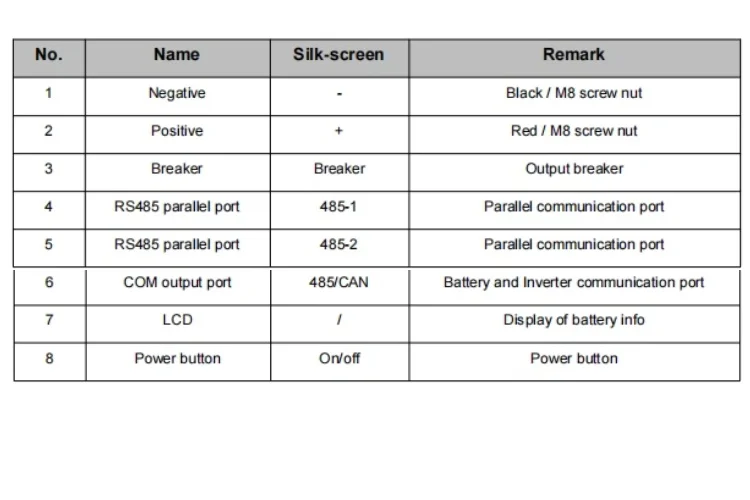

product grandtech 48v 560ah 600ah 628ah lifepo4 lithium ion battery pack 15kwh 20kwh 30kwh home energy storage system-6

product grandtech 48v 560ah 600ah 628ah lifepo4 lithium ion battery pack 15kwh 20kwh 30kwh home energy storage system-7

product grandtech 48v 560ah 600ah 628ah lifepo4 lithium ion battery pack 15kwh 20kwh 30kwh home energy storage system-8

product grandtech 48v 560ah 600ah 628ah lifepo4 lithium ion battery pack 15kwh 20kwh 30kwh home energy storage system-9

product grandtech 48v 560ah 600ah 628ah lifepo4 lithium ion battery pack 15kwh 20kwh 30kwh home energy storage system-10

product grandtech 48v 560ah 600ah 628ah lifepo4 lithium ion battery pack 15kwh 20kwh 30kwh home energy storage system-11

product grandtech 48v 560ah 600ah 628ah lifepo4 lithium ion battery pack 15kwh 20kwh 30kwh home energy storage system-12

Company Profile

SICHUAN GRANDTECH NEW ENERGY TECHNOLOGY CO. LTD. is a professional supplier of solar energy storage industry. We are engaged in manufacturing and marketing of high quality solar inverter and storage energy battery, with the certificates of IEC62619,

UL1741(SA&SB),UL1973,UL9540,UL9540A,ETL,ISO etc...

We are ability to make the fast delivery to our clients in USA and European countries as we have a warehouse in California and Poland.We strive to provide our clients with high quality products, good service, timely delivery and competitive prices and look forward to cooperating with you.
