Product Description

product grandtech 10kwh 15kwh 16kwh lifepo4 lithium battery 100ah 200ah 314ah 512v 20kwh bms lithium battery with inverter hybrid-2

Products Description

product grandtech 10kwh 15kwh 16kwh lifepo4 lithium battery 100ah 200ah 314ah 512v 20kwh bms lithium battery with inverter hybrid-3

product grandtech 10kwh 15kwh 16kwh lifepo4 lithium battery 100ah 200ah 314ah 512v 20kwh bms lithium battery with inverter hybrid-4

Advantages:

No Maintenance Required: Designed for hassle-free operation, with a modular setup that makes installation and future capacity expansion easy.
Extended Lifespan: Offers up to 6,500 charge cycles, ensuring long-term durability and value.
Integrated Smart BMS: Equipped with advanced Battery Management System, providing multiple layers of protection and communication features for efficient monitoring and control.
Wide Temperature Tolerance: Performs reliably across a broad range of temperatures, ensuring dependable operation in various environments.

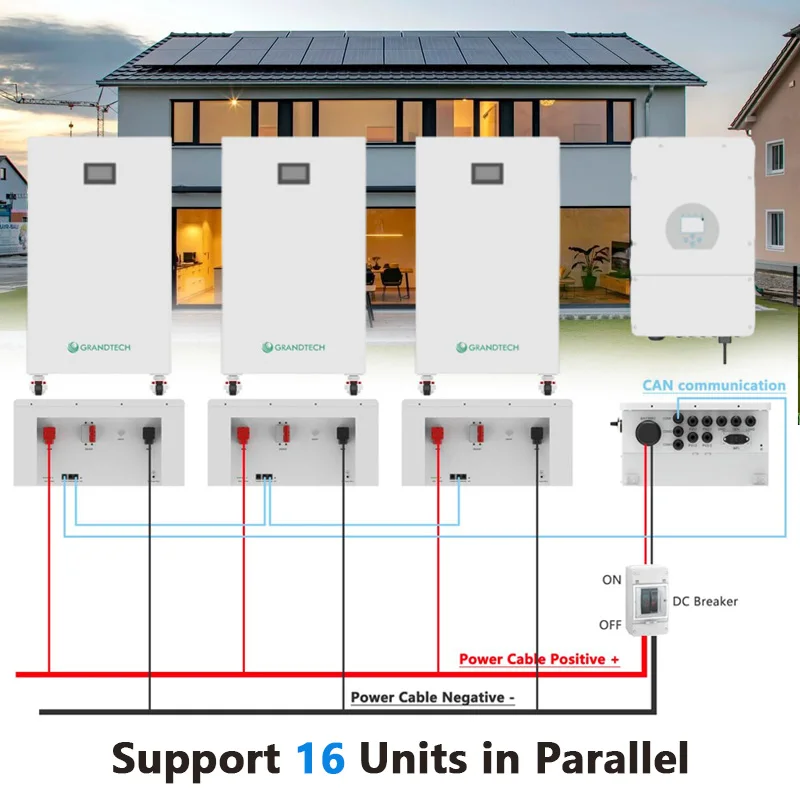

Scalable Storage: Multiple units can be connected in parallel to meet high energy storage demands, making it suitable for expanding systems.
Universal Compatibility: Works seamlessly with various charge controllers and inverters for easy integration into different systems.
Versatile Applications: Ideal for off-grid solar storage, backup power for telecom systems, and central data centers,among other uses.

Specification

Model No	GSL-W-A16K
Nominal Parameters
Battery Chemistry	LiFePO4
Voltage	51.2V
Capacity	314Ah
Energy	16.08kWh

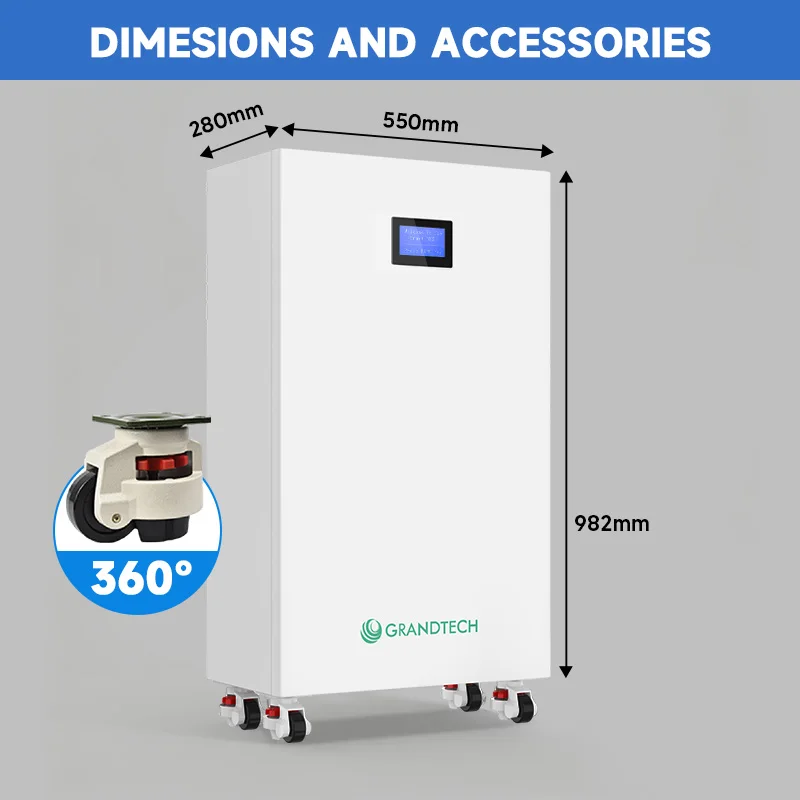

Dimension(W/H/D)	550982280mm/21.638.611.0 in
Weight Approximate	135kgs/298 Ibs
Basic Parameters
Warranty Period [3]	5 years
Cycle Life(25±2℃,0.5C/0.5C,80%EOL)	≥6500
Storage Time /Temperature	5 months @25℃;3 months @35℃;1 month @45℃
Operation Temperature	-20℃ to 60℃@60+/-25%Relative Humidity
Storage Temperature	0℃ to 45℃@60+/-25%Relative Humidity
Certification	CE,UN38.3,MSDS
IP Rating of Enclosur	IP20
Electrical Parameters
Operation Voltage	46-56Vdc
Max.Charging Voltage	56Vdc
Max.Charging Current	150A
Max.Discharging Current	150A

product grandtech 10kwh 15kwh 16kwh lifepo4 lithium battery 100ah 200ah 314ah 512v 20kwh bms lithium battery with inverter hybrid-5

product grandtech 10kwh 15kwh 16kwh lifepo4 lithium battery 100ah 200ah 314ah 512v 20kwh bms lithium battery with inverter hybrid-6

product grandtech 10kwh 15kwh 16kwh lifepo4 lithium battery 100ah 200ah 314ah 512v 20kwh bms lithium battery with inverter hybrid-7

product grandtech 10kwh 15kwh 16kwh lifepo4 lithium battery 100ah 200ah 314ah 512v 20kwh bms lithium battery with inverter hybrid-8

product grandtech 10kwh 15kwh 16kwh lifepo4 lithium battery 100ah 200ah 314ah 512v 20kwh bms lithium battery with inverter hybrid-9

product grandtech 10kwh 15kwh 16kwh lifepo4 lithium battery 100ah 200ah 314ah 512v 20kwh bms lithium battery with inverter hybrid-10

product grandtech 10kwh 15kwh 16kwh lifepo4 lithium battery 100ah 200ah 314ah 512v 20kwh bms lithium battery with inverter hybrid-11

product grandtech 10kwh 15kwh 16kwh lifepo4 lithium battery 100ah 200ah 314ah 512v 20kwh bms lithium battery with inverter hybrid-12

product grandtech 10kwh 15kwh 16kwh lifepo4 lithium battery 100ah 200ah 314ah 512v 20kwh bms lithium battery with inverter hybrid-13

product grandtech 10kwh 15kwh 16kwh lifepo4 lithium battery 100ah 200ah 314ah 512v 20kwh bms lithium battery with inverter hybrid-14

product grandtech 10kwh 15kwh 16kwh lifepo4 lithium battery 100ah 200ah 314ah 512v 20kwh bms lithium battery with inverter hybrid-15

Company Profile

SICHUAN GRANDTECH NEW ENERGY TECHNOLOGY CO. LTD. is a professional supplier of solar energy storage industry. We are engaged in manufacturing and marketing of high quality solar inverter and storage energy battery, with the certificates of IEC62619,

UL1741(SA&SB),UL1973,UL9540,UL9540A,ETL,ISO etc...

We are ability to make the fast delivery to our clients in USA and European countries as we have a warehouse in California and Poland.We strive to provide our clients with high quality products, good service, timely delivery and competitive prices and look forward to cooperating with you.
