Product Description
product best price srne hebp 15000 18000w 6kw 8kw 12kw 15kw 16lw 18kw split phase off grid storage inverter 12kw split phase inverter-2
Products Description

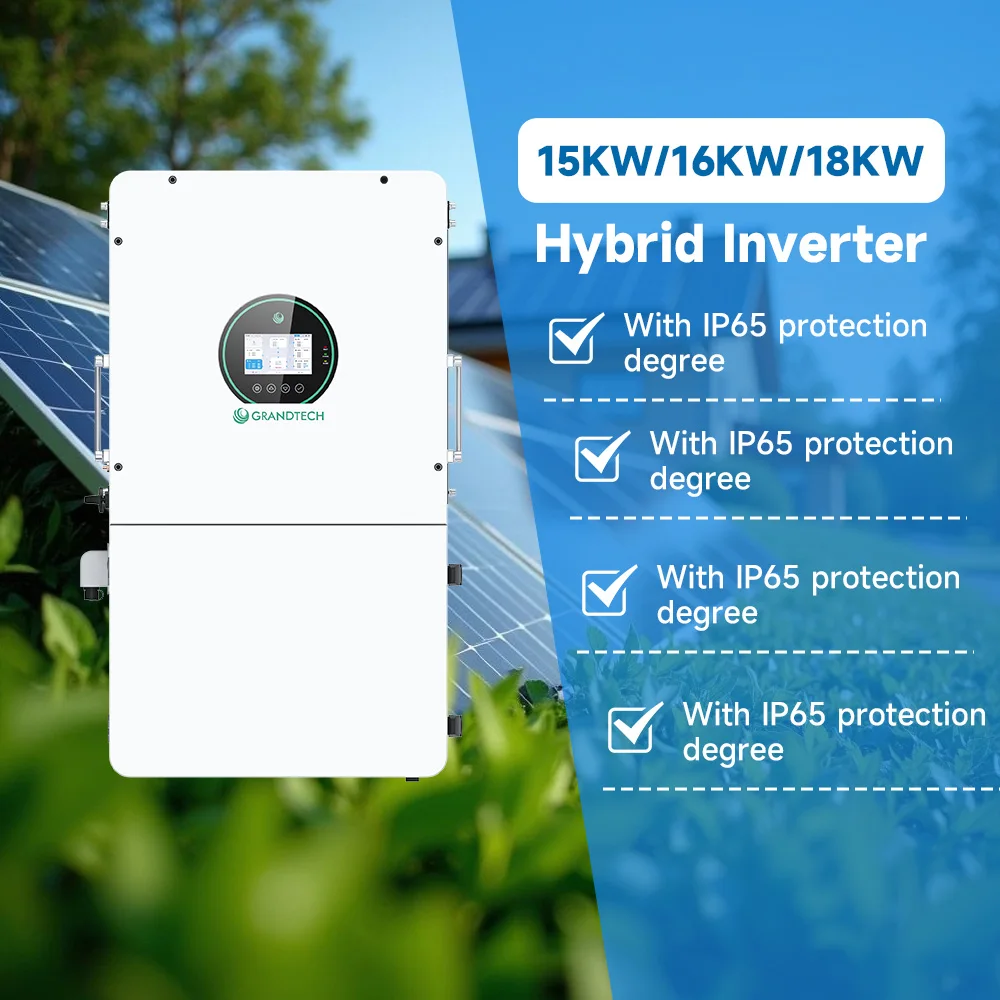

High-performance 15kW 16kW and 18kW split-phase hybrid solar inverter designed for residential and light commercial energy storage applications. It features triple MPPT, wide PV input range, high charge and discharge capability, and supports parallel expansion.
With smart load management, generator compatibility, and IP65 protection, it delivers reliable backup power and improved energy efficiency for both indoor and outdoor installations.
product best price srne hebp 15000 18000w 6kw 8kw 12kw 15kw 16lw 18kw split phase off grid storage inverter 12kw split phase inverter-3
Specification
Model
GTHB51150US2P-02
GTHB51160US2P-02
GTHB51180US2P-02
AC OUTPUT
Rated Output Power
15000W
16000W
18000W
Max.Peak Power
2 times rated power,10s
Max.Apparent Power
16500VA
17600VA
19800VA
Rated Output Voltage

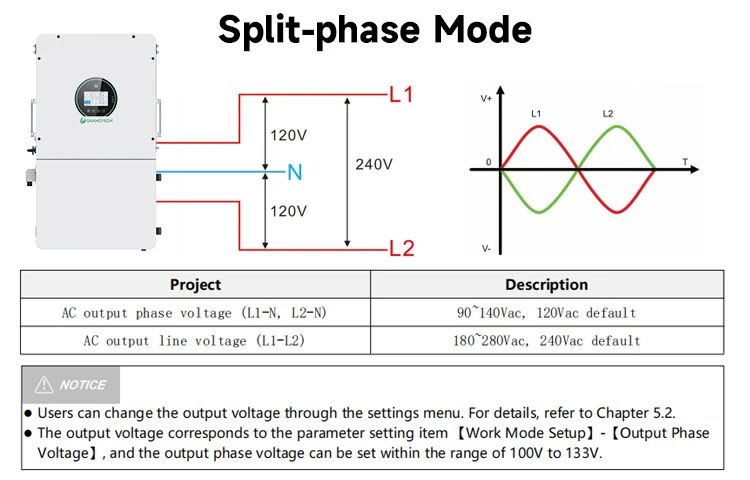

120/240Vac(Split-phase)120/208Vac(Single-phase)
Rated Output Current
62.5A
66.7A
75A
Rated Frequency
50/60Hz±0.3Hz
Waveform
Pure sine wave
BATTERY
Battery Type
Lead-acid battery /Lithium-ion battery /User-defined
Rated Battery Voltage
48Vdc
Battery Voltage Range
40Vdc~60Vdc
Max.Grid/Generator Charging Current
320Adc
340Adc
380Adc
Max.Charging/Discharging Current
320Adc
340Adc
380Adc
PV INPUT
No.of MPPT Trackers
3
No.of Strings MPPT Tracker
2+2+2
Max.PV Access Power
30000W
32000W
36000W
Max.PV Input Power
24000W
25600W
28800W
Max.PV Input Current
42Adc+42Adc +42Adc
Max.short-circuit current
63Adc+63Adc+63Adc
PV Start-up Voltage
120Vdc
Max.PV Open Circuit Voltage
600Vdc/600Vdc/600Vdc
MPPT Operating Voltage Range
120Vdc~500Vdc/120Vdc~500Vdc/120Vdc~500Vdc
GRID/GENERATOR INPUT
Rated Input Voltage
120/240Vac(Split-phase)120/208Vac(Single-phase)
Input Voltage Range
85Vac~140Vac/170Vac~280Vac
Input Frequency Range
50/60Hz

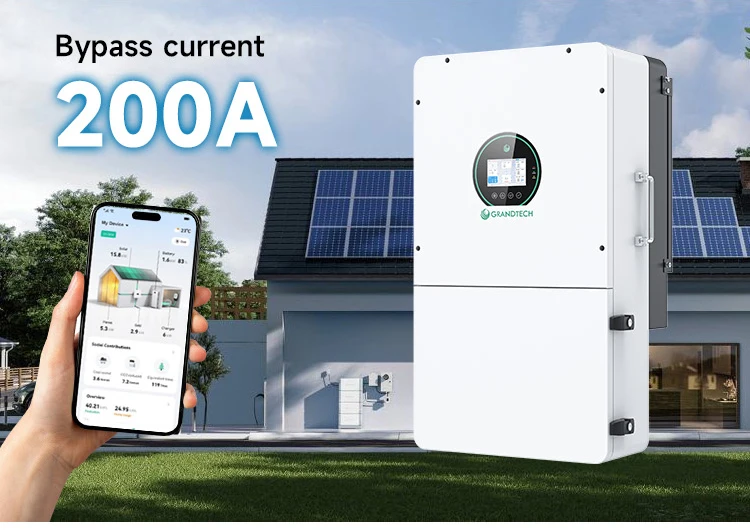

Bypass Overload Current
200Aac
product best price srne hebp 15000 18000w 6kw 8kw 12kw 15kw 16lw 18kw split phase off grid storage inverter 12kw split phase inverter-4

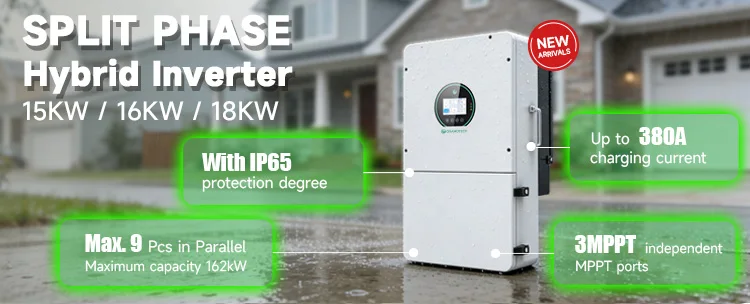

1.Triple independent MPPT design for higher solar energy yield
2.Supports 1.6 times PV oversizing to increase system efficiency
3.Up to 380A charge and discharge current for fast battery performance

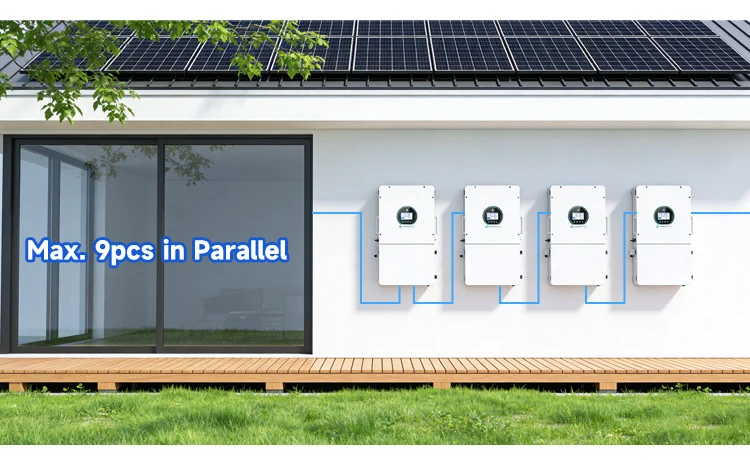

4.Parallel operation up to 9 units for flexible system expansion

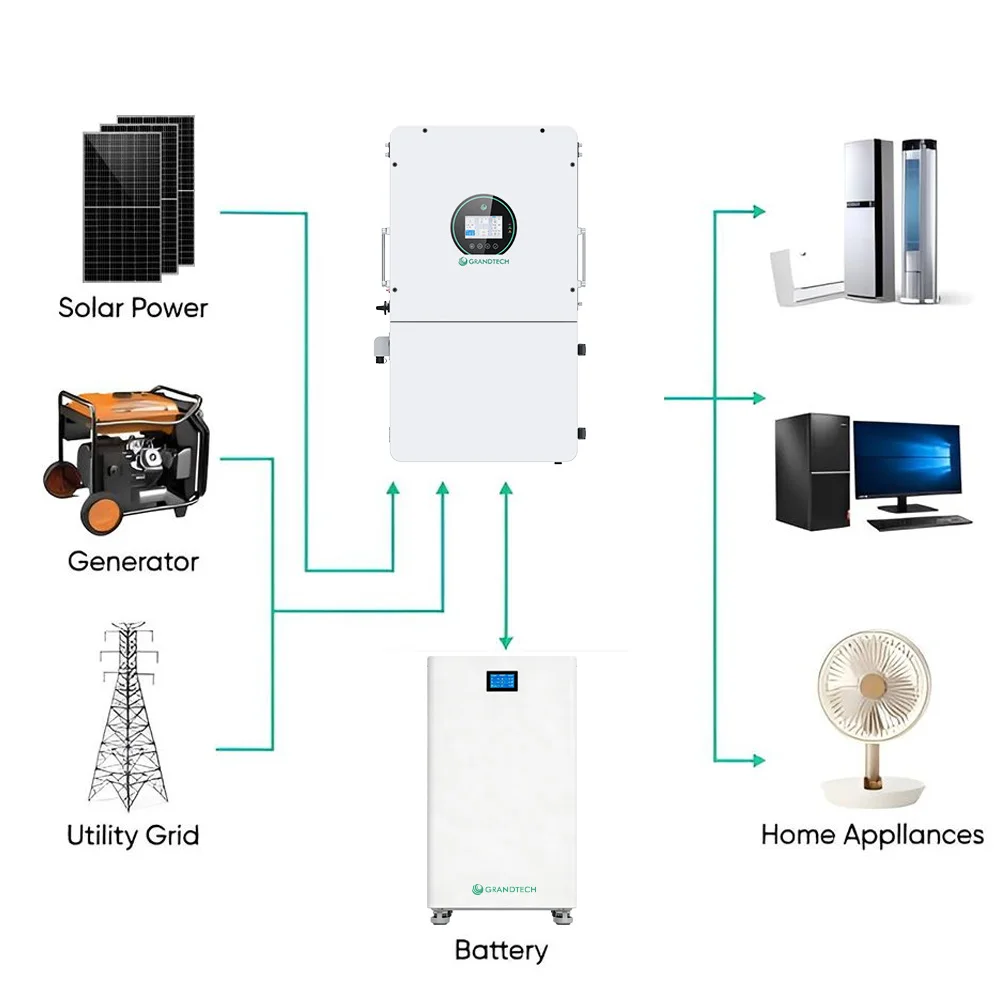

5.Grid PV and generator activation for reliable power supply
6.Independent generator port for backup integration
7.Smart load management for optimized energy distribution

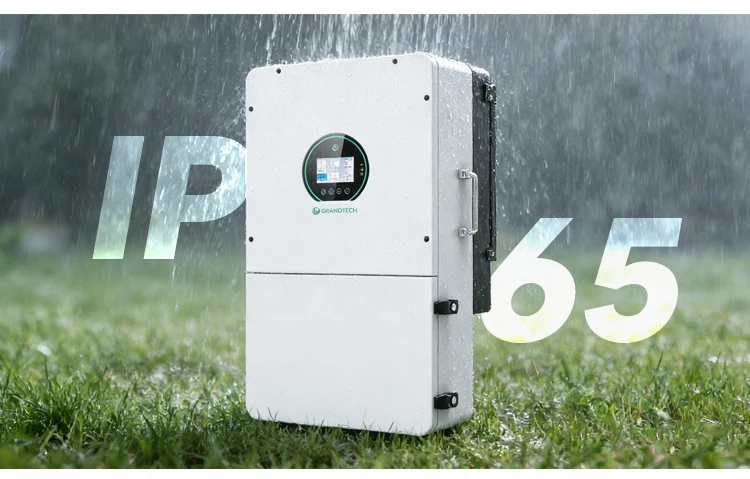

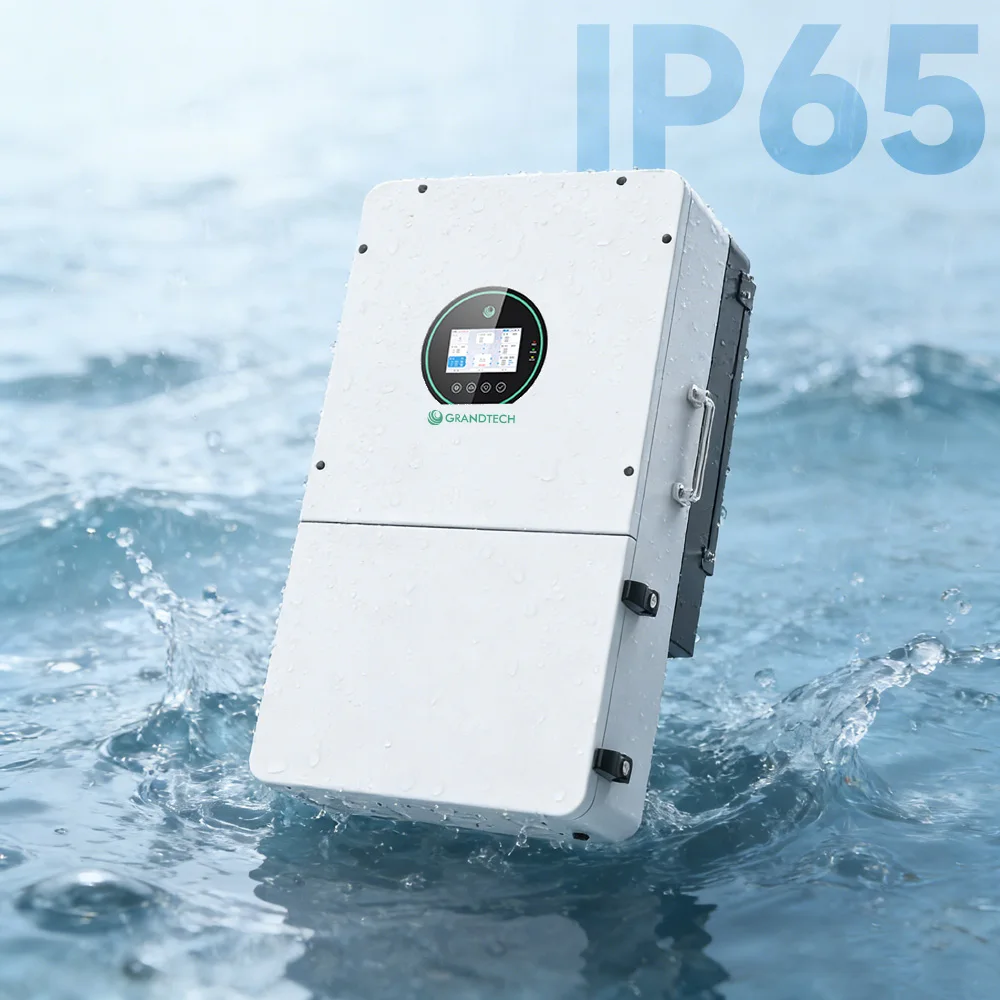

8.IP65 protection suitable for indoor and outdoor installation
