51.2v 100ah 200ah Low Voltage Rack Mounted Lithium Ion Battery Pack 5kwh 10kwh Lifepo4 Solar Energy Storage Battery Pack
51.2v 100ah 200ah Low Voltage Rack Mounted Lithium Ion Battery Pack 5kwh 10kwh Lifepo4 Solar Energy Storage Battery Pack
51.2v 100ah 200ah Low Voltage Rack Mounted Lithium Ion Battery Pack 5kwh 10kwh Lifepo4 Solar Energy Storage Battery Pack
51.2v 100ah 200ah Low Voltage Rack Mounted Lithium Ion Battery Pack 5kwh 10kwh Lifepo4 Solar Energy Storage Battery Pack
51.2v 100ah 200ah Low Voltage Rack Mounted Lithium Ion Battery Pack 5kwh 10kwh Lifepo4 Solar Energy Storage Battery Pack
51.2v 100ah 200ah Low Voltage Rack Mounted Lithium Ion Battery Pack 5kwh 10kwh Lifepo4 Solar Energy Storage Battery Pack
51.2v 100ah 200ah Low Voltage Rack Mounted Lithium Ion Battery Pack 5kwh 10kwh Lifepo4 Solar Energy Storage Battery Pack
51.2v 100ah 200ah Low Voltage Rack Mounted Lithium Ion Battery Pack 5kwh 10kwh Lifepo4 Solar Energy Storage Battery Pack
51.2v 100ah 200ah Low Voltage Rack Mounted Lithium Ion Battery Pack 5kwh 10kwh Lifepo4 Solar Energy Storage Battery Pack
51.2v 100ah 200ah Low Voltage Rack Mounted Lithium Ion Battery Pack 5kwh 10kwh Lifepo4 Solar Energy Storage Battery Pack
51.2v 100ah 200ah Low Voltage Rack Mounted Lithium Ion Battery Pack 5kwh 10kwh Lifepo4 Solar Energy Storage Battery Pack
51.2v 100ah 200ah Low Voltage Rack Mounted Lithium Ion Battery Pack 5kwh 10kwh Lifepo4 Solar Energy Storage Battery Pack

51.2v 100ah 200ah Low Voltage Rack Mounted Lithium Ion Battery Pack 5kwh 10kwh Lifepo4 Solar Energy Storage Battery Pack

Get a Quote
Product Description

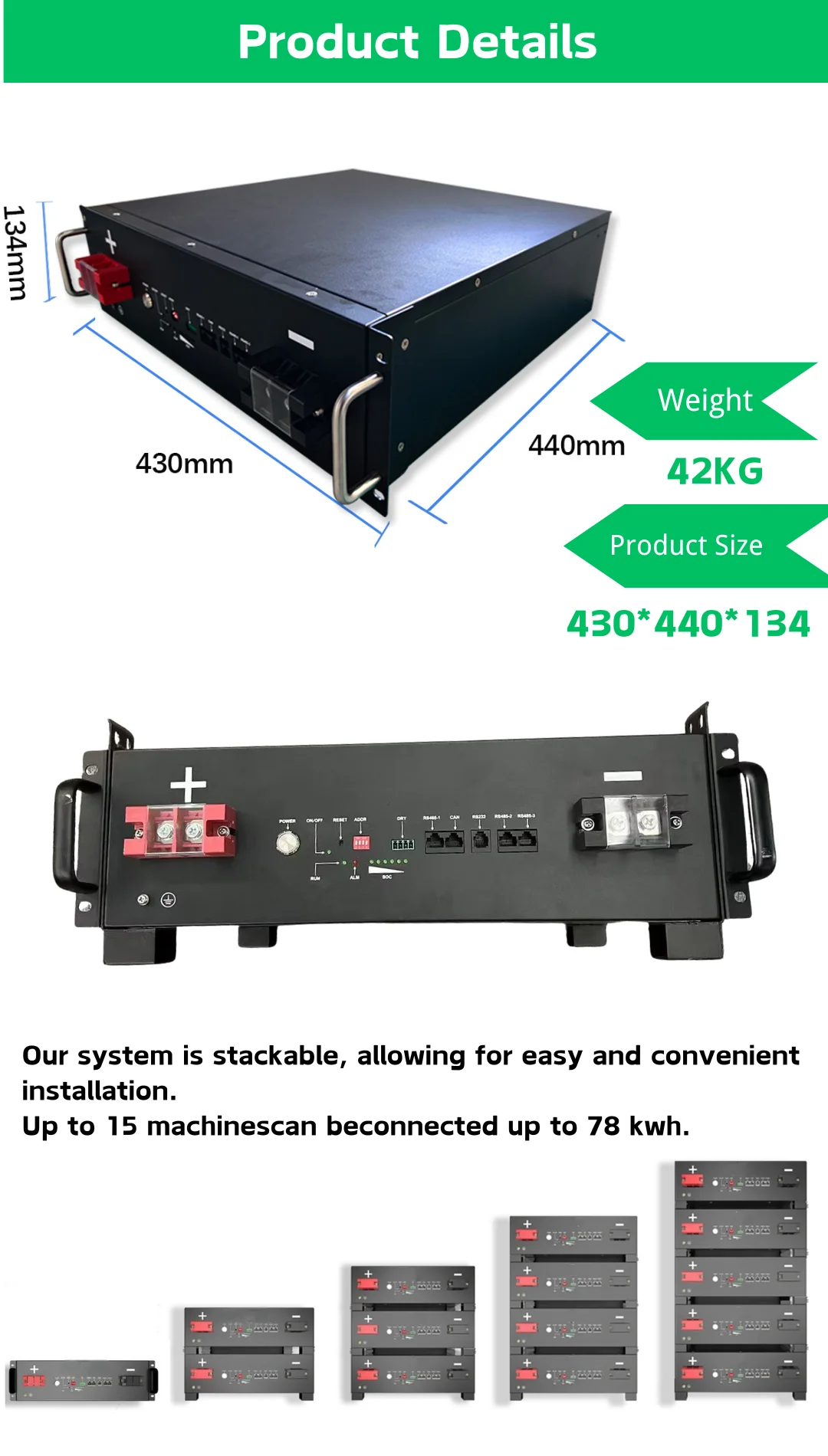

product 512v 100ah 200ah low voltage rack mounted lithium ion battery pack 5kwh 10kwh lifepo4 solar energy storage battery pack-2
product 512v 100ah 200ah low voltage rack mounted lithium ion battery pack 5kwh 10kwh lifepo4 solar energy storage battery pack-3
Specification
Model
RF-A5.2KWH-1
RF-A5.2KWH-2
RF-A5.2KWH-3
RF-A5.2KWH-4
RF-A5.2KWH-5
Nominal capacity(Ah)
100
Nominal energy(KWh)
5.2
10.4
15.6
20.8
26
Module specifcation
5.12KWh|51.2V|42Kg
Nominal voltage(V)
51.2V
Working voltage(V)
46.4V-58.4
Max discharge curent(A)
100
Coninuous charging curent(A)
50
Battery type
LiFePo4
BMS communication mode
RS485/CAN
Protection/Security
Over charge Protection/Under voltage Protection/Over current Protection
Cycle Life
Cycle Life ＞6000 Times
Operating temperature
-10~50℃
Discharge eficiency(%)
95
Dimension(L*W*H)(mm)
430*440*134
430*440*320
430*440*480
430*440*641
430*440*801
Weight(KG)
42
84
126
168
210
Warranty(years)
5 Years
Water Dust Resistance
IP20
Cooling mode
Natural Cooling
Installation mode
In Parallel
Certifcation
CE/UN38.3/RoHS
Product Description
product 512v 100ah 200ah low voltage rack mounted lithium ion battery pack 5kwh 10kwh lifepo4 solar energy storage battery pack-4
product 512v 100ah 200ah low voltage rack mounted lithium ion battery pack 5kwh 10kwh lifepo4 solar energy storage battery pack-5
product 512v 100ah 200ah low voltage rack mounted lithium ion battery pack 5kwh 10kwh lifepo4 solar energy storage battery pack-6
product 512v 100ah 200ah low voltage rack mounted lithium ion battery pack 5kwh 10kwh lifepo4 solar energy storage battery pack-7
product 512v 100ah 200ah low voltage rack mounted lithium ion battery pack 5kwh 10kwh lifepo4 solar energy storage battery pack-8
product 512v 100ah 200ah low voltage rack mounted lithium ion battery pack 5kwh 10kwh lifepo4 solar energy storage battery pack-9
product 512v 100ah 200ah low voltage rack mounted lithium ion battery pack 5kwh 10kwh lifepo4 solar energy storage battery pack-10
product 512v 100ah 200ah low voltage rack mounted lithium ion battery pack 5kwh 10kwh lifepo4 solar energy storage battery pack-11
product 512v 100ah 200ah low voltage rack mounted lithium ion battery pack 5kwh 10kwh lifepo4 solar energy storage battery pack-12
Company Profile
FAQ
1. Who are we?
We are based in Sichuan, China, start from 2018,sell to Mid East(40.00%),Eastern Europe(20.00%),Africa(20.00%),South Asia(20.00%). There are total about more than 10 people in our office.

2. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.What can you buy from us?
Wall Mounted Energy Storage, Stacked Energy Storage, Solar Inverters

4. Why should you buy from us not from other suppliers?
null

5. What services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,FCA；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese,Spanish,Russian
×
