Product Description

product 3kw 4kw 5kw 6kw 8kw 10kw 12kw hybrid split phase solar inverter with mppt charge controller home use us version inverter-2

product 3kw 4kw 5kw 6kw 8kw 10kw 12kw hybrid split phase solar inverter with mppt charge controller home use us version inverter-3

product 3kw 4kw 5kw 6kw 8kw 10kw 12kw hybrid split phase solar inverter with mppt charge controller home use us version inverter-4

Specification

Model	GES48120M220-500P
Parallelmode

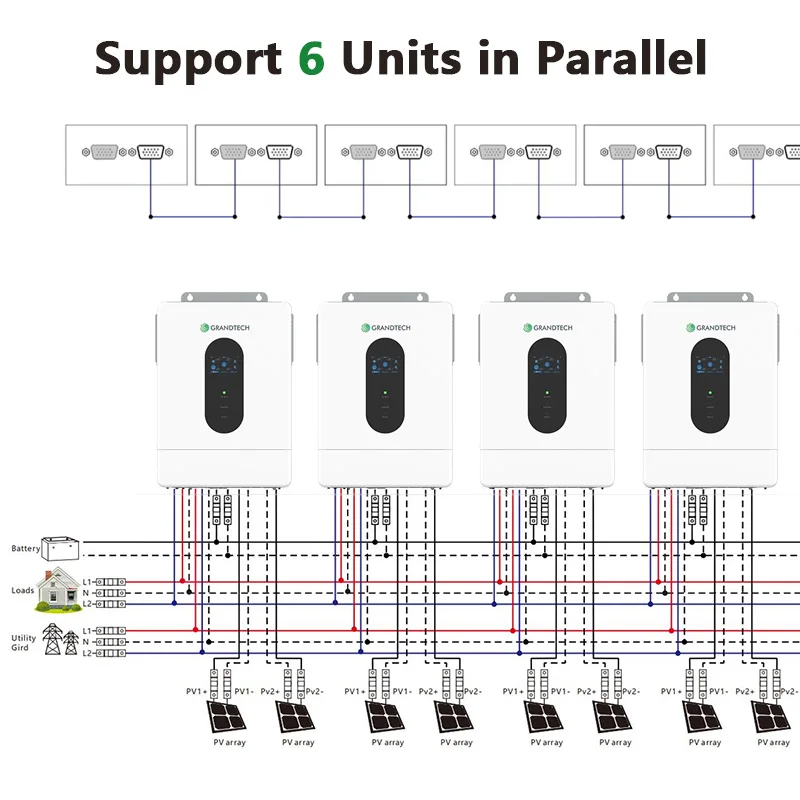

Permitted parallel number	NO/1~6
AC mode
Rated input voltage	120(L1/N,L2/N)/240Vac(L1/L2)
Input phase voltage range	(85Vac~140Vac)±2%
Frequency	50Hz/60Hz(Automatic detection)
Frequency Range	47±0.3Hz~55±0.3Hz(50Hz); 57±0.3Hz~65±0.3Hz(60Hz);
Efficiency	>95%
Conversion time(bypass and inverter)	10ms(typical)
Conversion time(bypass and inverter)	10ms(typical)
AC reverse protection	Yes
Maximum bypass phase overload curent	2 pole,60A/60A(L1/L2)
Inverter mode
Output voltage waveform	Pure sine wave
Rated output power (VA)	Split phase:12000 Single phase:7200 (limited by the wiring terminals)
Rated output power (VA)
Rated output power (W)	Split phase:12000 Single phase:7200 (limited by the wiring terminals)
Rated output power (W)
Power factor	1
Rated output voltage (Vac)	120Vac(L1/N,L2/N)/240Vac(L1/L2)
Output voltage error	±5%
Output frequency range(Hz)	50Hz±0.3Hz/60Hz±0.3Hz
Maximum Efficiency	>91%
Overload protection	(105%(110%Load>125%±5%:report error'and turn off the output after 5 seconds;
Peak power	Split phase:18000VA Single phase:18000VA
Loaded motor capability	6HP
Output short circuit protection Can protect,after continuous short circuit for 1 second
Bypass circuit breaker phasespecification	2 pole,63A/63A(L1/L2)
Rated battery input voltage 51.2V(Minimum starting voltage 44V)
Battery voltage range	40.0Vdc~58.6Vdc±0.6Vdc(Undervoltage alarm/shutdown voltage/overvoltage alarm/overvoltage recovery.settáble on LCD screen)
Power saving mode self-consumption Load≤25W enter power-saving mode
Battery type	Lead acid or lithium battery
Maximum charge current(can be set)	160A
Charge current error	±5Adc
Charge voltage range	40-58.6Vdc
Short circuit protection	Circuit breaker and blown fuse
Circuit breaker phase specifications	2 pole,60A/60A(L1/L2)
