Product Description

product 30kwh lithium 48v home energy storage batteries system 512v 300ah 400ah 560ah 20kwh solar lifepo4 battery with bms-2

Products Description

product 30kwh lithium 48v home energy storage batteries system 512v 300ah 400ah 560ah 20kwh solar lifepo4 battery with bms-3

Advantages:

No Maintenance Required: Designed for hassle-free operation, with a modular setup that makes installation and future capacity expansion easy.
Extended Lifespan: Offers up to 6,000 charge cycles, ensuring long-term durability and value.

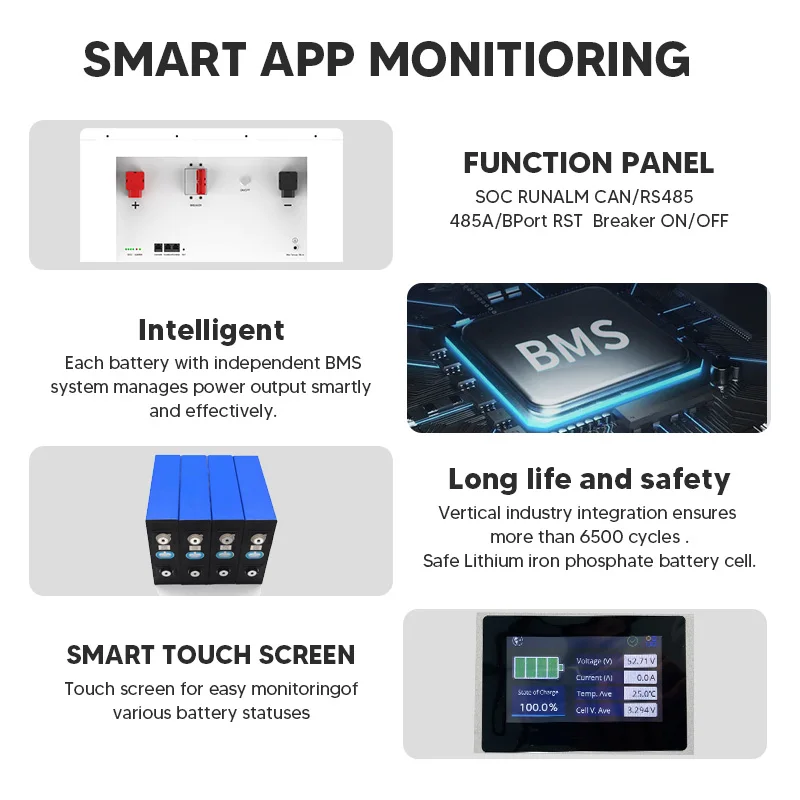

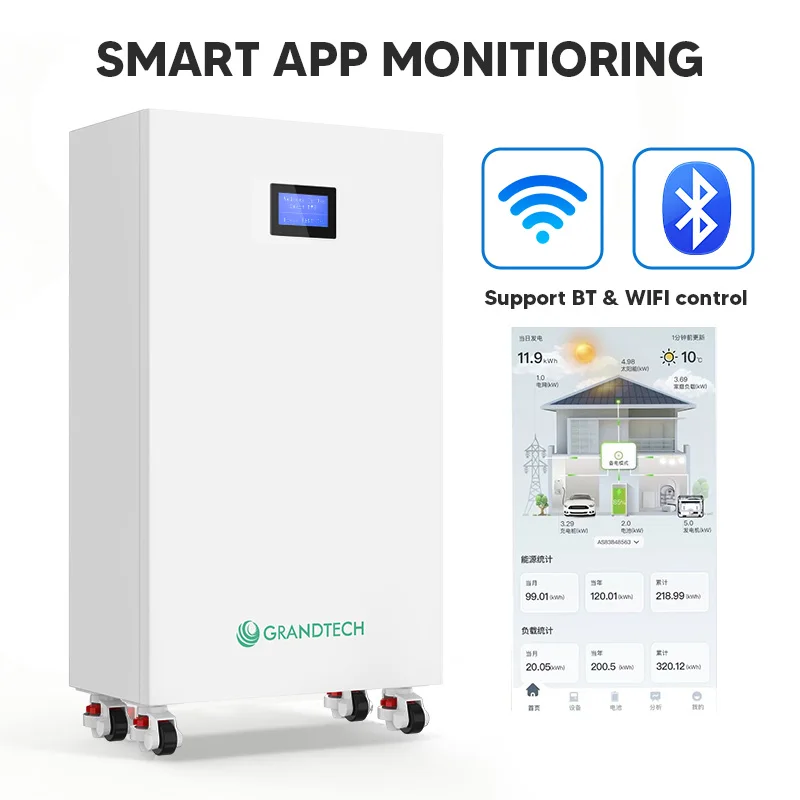

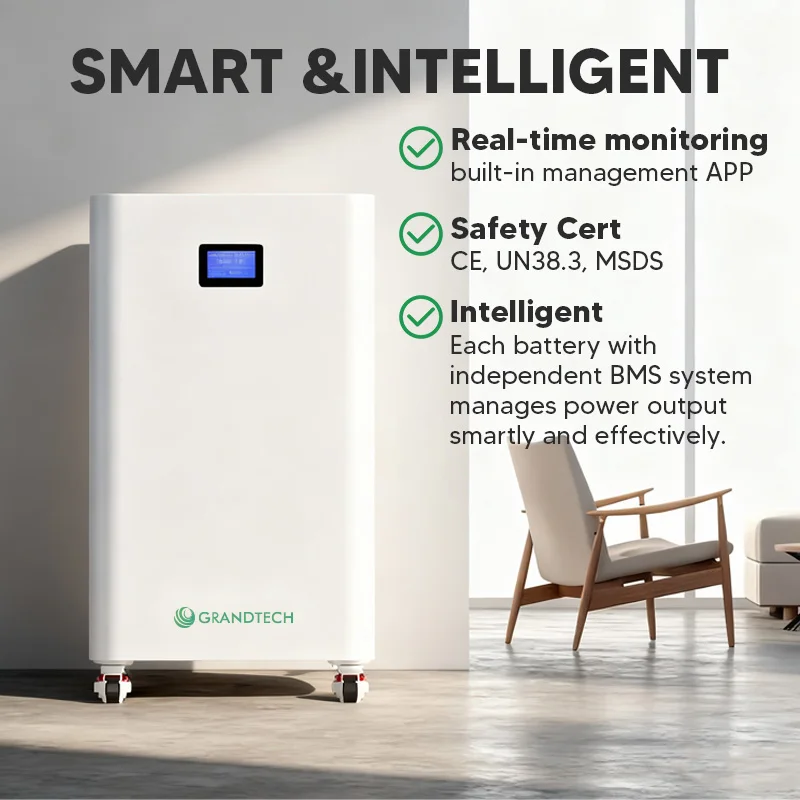

Integrated Smart BMS: Equipped with advanced Battery Management System, providing multiple layers of protection and communication features for efficient monitoring and control.
Wide Temperature Tolerance: Performs reliably across a broad range of temperatures, ensuring dependable operation in various environments.
Scalable Storage: Multiple units can be connected in parallel to meet high energy storage demands, making it suitable for expanding systems.

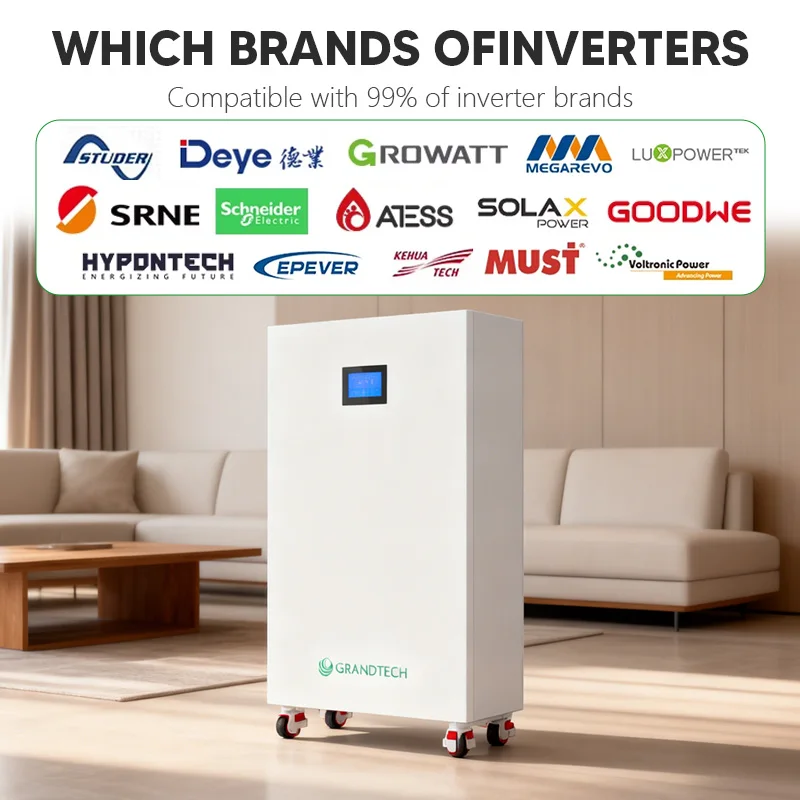

Universal Compatibility: Works seamlessly with various charge controllers and inverters for easy integration into different systems.
Versatile Applications: Ideal for off-grid solar storage, backup power for telecom systems, and central data centers,among other uses.

product 30kwh lithium 48v home energy storage batteries system 512v 300ah 400ah 560ah 20kwh solar lifepo4 battery with bms-4

product 30kwh lithium 48v home energy storage batteries system 512v 300ah 400ah 560ah 20kwh solar lifepo4 battery with bms-5

Specification

Model No	GSL-W-A20K
Nominal Parameters
Battery Chemistry	LiFePO4
Voltage	51.2V
Capacity	400Ah
Energy	20.48kWh
Dimension (W/H/D)	550982280mm / 21.638.611.0 in
Weight Approximate	177kgs / 421 lbs
Basic Parameters
Warranty Period [3]	5 years
Cycle Life (25±2℃,0.5C/0.5C,80%EOL)	≥6500
Storage Time / Temperature	5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C
Operation Temperature	-20°C to 60°C @ 60+/-25% Relative Humidity
Storage Temperature	0°C to 45°C @ 60+/-25% Relative Humidity
Certification	CE, UN38.3, MSDS
IP Rating of Enclosur	IP20
Electrical Parameters Operation Voltage	46-56Vdc
Max. Charging Voltage	56Vdc
Max. Charging Current	200A
Max. Discharging Current	200A
Max Capacity	20480W

product 30kwh lithium 48v home energy storage batteries system 512v 300ah 400ah 560ah 20kwh solar lifepo4 battery with bms-6

product 30kwh lithium 48v home energy storage batteries system 512v 300ah 400ah 560ah 20kwh solar lifepo4 battery with bms-7

product 30kwh lithium 48v home energy storage batteries system 512v 300ah 400ah 560ah 20kwh solar lifepo4 battery with bms-8

product 30kwh lithium 48v home energy storage batteries system 512v 300ah 400ah 560ah 20kwh solar lifepo4 battery with bms-9

product 30kwh lithium 48v home energy storage batteries system 512v 300ah 400ah 560ah 20kwh solar lifepo4 battery with bms-10

product 30kwh lithium 48v home energy storage batteries system 512v 300ah 400ah 560ah 20kwh solar lifepo4 battery with bms-11

product 30kwh lithium 48v home energy storage batteries system 512v 300ah 400ah 560ah 20kwh solar lifepo4 battery with bms-12

product 30kwh lithium 48v home energy storage batteries system 512v 300ah 400ah 560ah 20kwh solar lifepo4 battery with bms-13

Company Profile

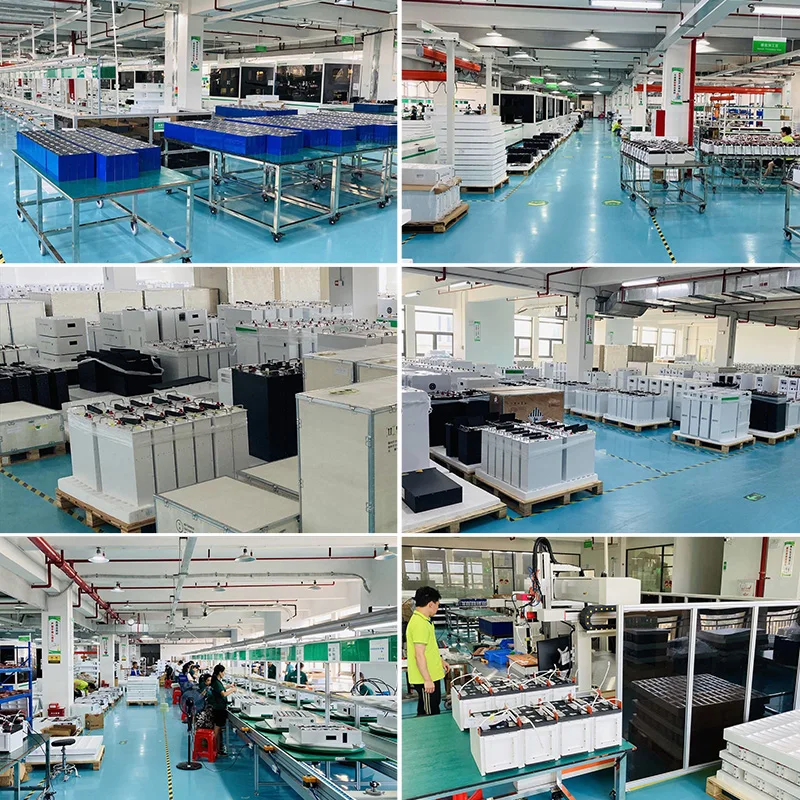

SICHUAN GRANDTECH NEW ENERGY TECHNOLOGY CO. LTD. is a professional supplier of solar energy storage industry. We are engaged in manufacturing and marketing of high quality solar inverter and storage energy battery, with the certificates of IEC62619,

UL1741(SA&SB),UL1973,UL9540,UL9540A,ETL,ISO etc...

We are ability to make the fast delivery to our clients in USA and European countries as we have a warehouse in California and Poland.We strive to provide our clients with high quality products, good service, timely delivery and competitive prices and look forward to cooperating with you.
