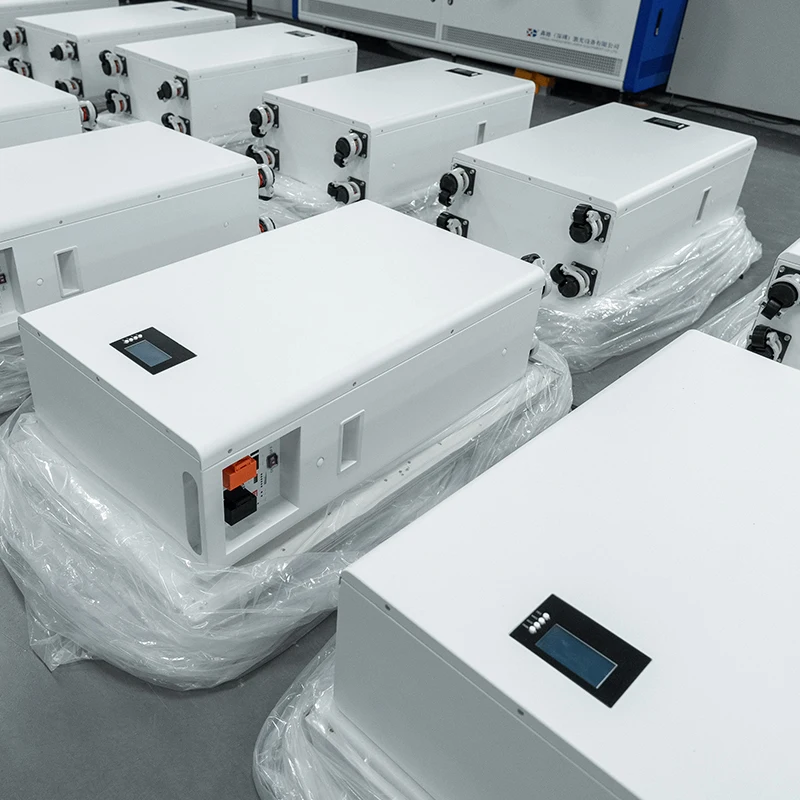

15kWh Low Voltage ESS Battery 48V 280Ah 314Ah LiFePO4 Floor-Standing Design CE & UN38.3 Parallel & DEYE Inverter Supported
15kWh Low Voltage ESS Battery 48V 280Ah 314Ah LiFePO4 Floor-Standing Design CE & UN38.3 Parallel & DEYE Inverter Supported
15kWh Low Voltage ESS Battery 48V 280Ah 314Ah LiFePO4 Floor-Standing Design CE & UN38.3 Parallel & DEYE Inverter Supported
15kWh Low Voltage ESS Battery 48V 280Ah 314Ah LiFePO4 Floor-Standing Design CE & UN38.3 Parallel & DEYE Inverter Supported
15kWh Low Voltage ESS Battery 48V 280Ah 314Ah LiFePO4 Floor-Standing Design CE & UN38.3 Parallel & DEYE Inverter Supported
15kWh Low Voltage ESS Battery 48V 280Ah 314Ah LiFePO4 Floor-Standing Design CE & UN38.3 Parallel & DEYE Inverter Supported
15kWh Low Voltage ESS Battery 48V 280Ah 314Ah LiFePO4 Floor-Standing Design CE & UN38.3 Parallel & DEYE Inverter Supported
15kWh Low Voltage ESS Battery 48V 280Ah 314Ah LiFePO4 Floor-Standing Design CE & UN38.3 Parallel & DEYE Inverter Supported
15kWh Low Voltage ESS Battery 48V 280Ah 314Ah LiFePO4 Floor-Standing Design CE & UN38.3 Parallel & DEYE Inverter Supported
15kWh Low Voltage ESS Battery 48V 280Ah 314Ah LiFePO4 Floor-Standing Design CE & UN38.3 Parallel & DEYE Inverter Supported
15kWh Low Voltage ESS Battery 48V 280Ah 314Ah LiFePO4 Floor-Standing Design CE & UN38.3 Parallel & DEYE Inverter Supported
15kWh Low Voltage ESS Battery 48V 280Ah 314Ah LiFePO4 Floor-Standing Design CE & UN38.3 Parallel & DEYE Inverter Supported

15kWh Low Voltage ESS Battery 48V 280Ah 314Ah LiFePO4 Floor-Standing Design CE & UN38.3 Parallel & DEYE Inverter Supported

Get a Quote
Product Description
Specification
Model
GT-FL15KW
Nominal voltage
51.2V
Nominal capacity
280A h/14336Wh
Cell type
LiFePO4
Charging cut-off voltage
57.6V
Discharge cut-off voltage
43.2V
Max-continuous discharge current
200A
Instantaneous discharge current
400A
Display
LCD or touchscreen display screen
Standard charging current
<100A
Standard discharge current
100A
Storage temperature
0℃ ~60℃
Operating temperature
﹣20℃ ~60℃
Design life
5Years
Cycle life
>6000 90%DOD
Battery pack size
500*260*932mm
Battery pack N.W./G.W.
135kg/157kg
Communication interface
CAN/RS232/RS485
Cooling method
Air cooling/active balancing
product 15kwh low voltage ess battery 48v 280ah 314ah lifepo4 floor standing design ce un383 parallel deye inverter supported-1
product 15kwh low voltage ess battery 48v 280ah 314ah lifepo4 floor standing design ce un383 parallel deye inverter supported-2
product 15kwh low voltage ess battery 48v 280ah 314ah lifepo4 floor standing design ce un383 parallel deye inverter supported-3
product 15kwh low voltage ess battery 48v 280ah 314ah lifepo4 floor standing design ce un383 parallel deye inverter supported-4
product 15kwh low voltage ess battery 48v 280ah 314ah lifepo4 floor standing design ce un383 parallel deye inverter supported-5

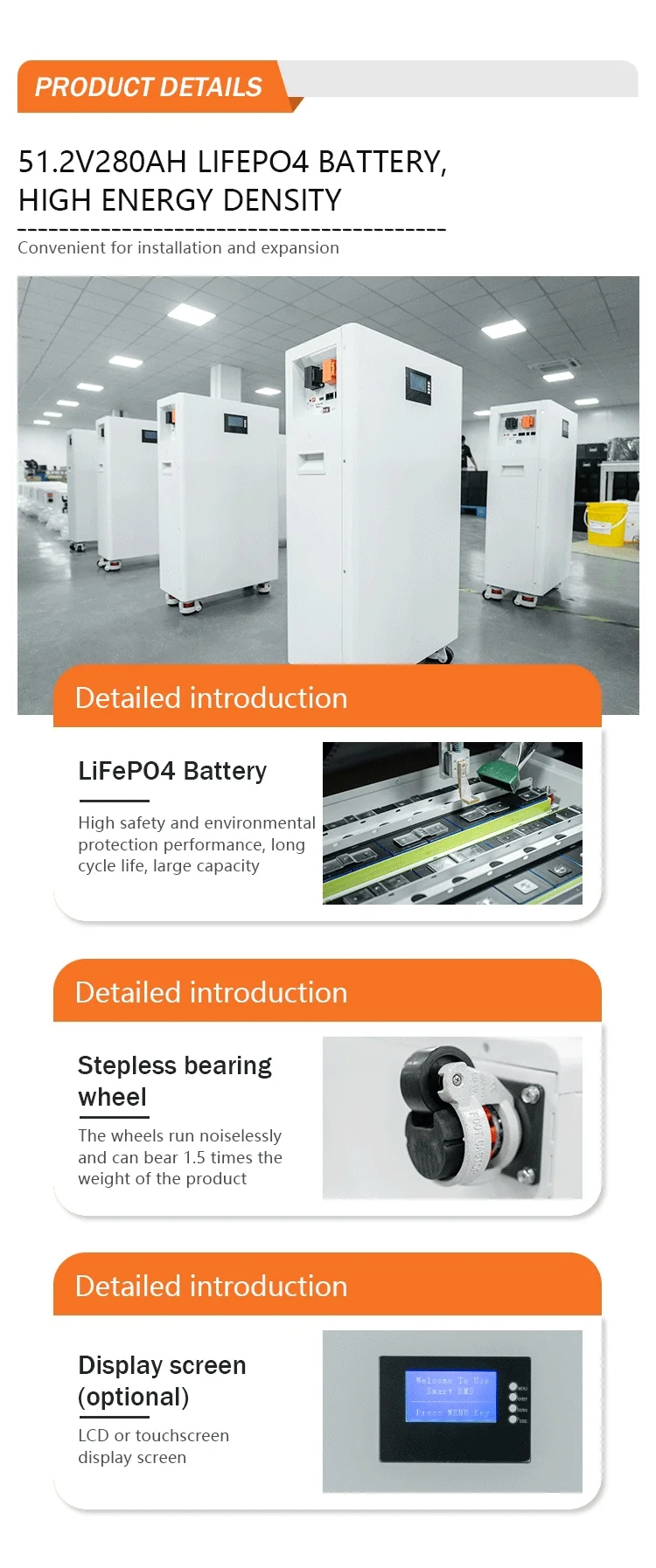

Products Description
product 15kwh low voltage ess battery 48v 280ah 314ah lifepo4 floor standing design ce un383 parallel deye inverter supported-6

Product Overview

The GT-FL15KW Residential Energy Storage Series is a low-voltage lithium battery module developed by Grandtech, specifically designed for residential energy storage applications. The module enables high-precision monitoring of multi-cell voltage andtemperature, ensuring reliable and efficient system performance.
Key Features:
* Passive Balancing Technology: Supports a maximum balancing current of 300mA, effectively extending the overall lifespan of the battery pack.
* Versatile Communication Interfaces:Equipped with CAN, RS485, and dry contact interfaces for seamless external communication and system integration.
* Integrated Battery Management System (BMS): The embedded BMS provides real-time protection against over-temperature,over-voltage, and over-current conditions, significantly reducing the risk of battery damage or fire, and ensuring the safety of both people and property.
This manual provides detailed information on the model types, dimensions, performance specifications, technical characteristics,safety warnings, and handling precautions of the GT-FL15KW series. It applies exclusively to lithium battery systems supplied by Grandtech.

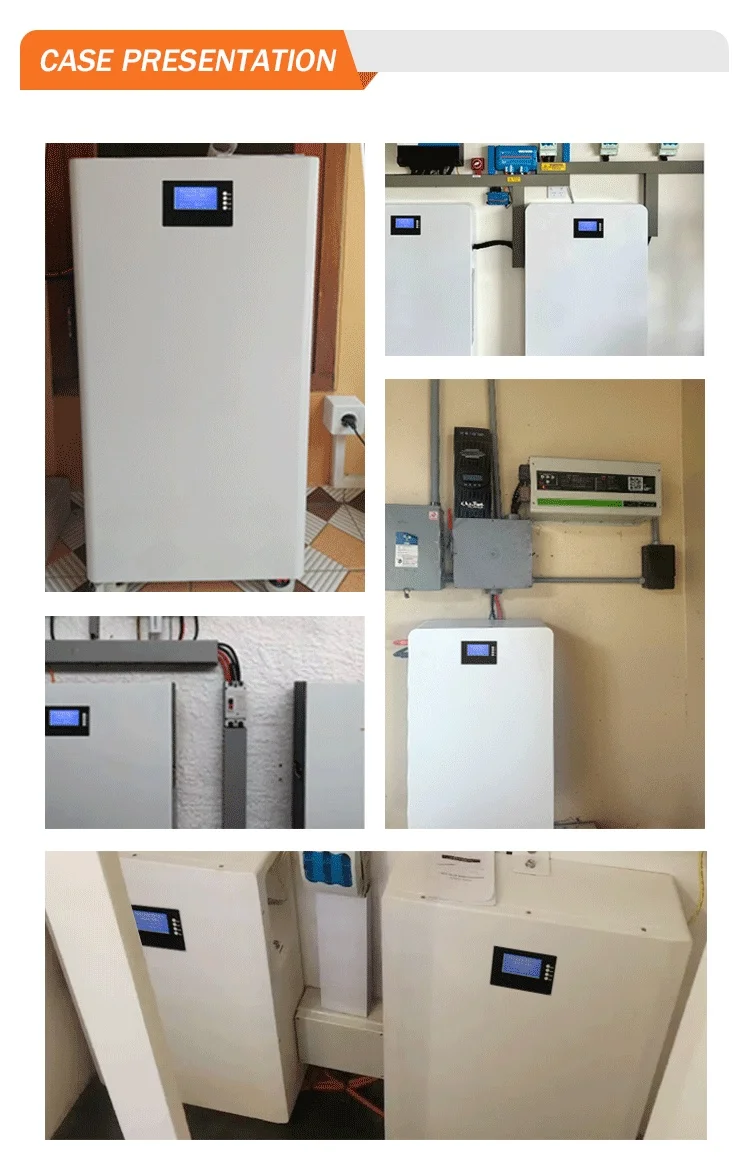

Projects Case
product 15kwh low voltage ess battery 48v 280ah 314ah lifepo4 floor standing design ce un383 parallel deye inverter supported-7

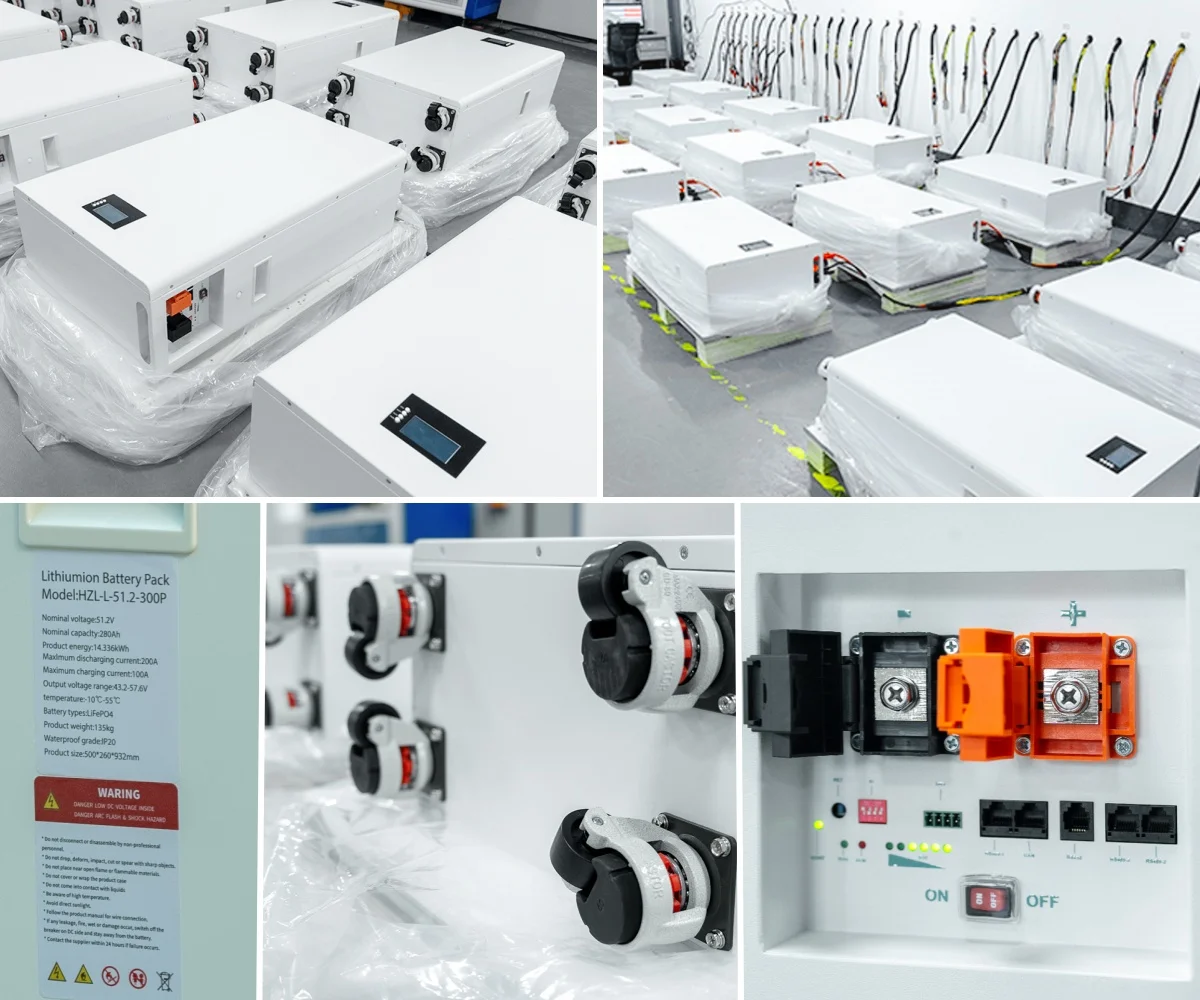

Product packaging
product 15kwh low voltage ess battery 48v 280ah 314ah lifepo4 floor standing design ce un383 parallel deye inverter supported-8
Customer Review
product 15kwh low voltage ess battery 48v 280ah 314ah lifepo4 floor standing design ce un383 parallel deye inverter supported-9
Certifications
product 15kwh low voltage ess battery 48v 280ah 314ah lifepo4 floor standing design ce un383 parallel deye inverter supported-10
Company Profile
product 15kwh low voltage ess battery 48v 280ah 314ah lifepo4 floor standing design ce un383 parallel deye inverter supported-11
SICHUAN GRANDTECH NEW ENERGY TECHNOLOGY CO. LTD. is a professional supplier of solar energy storage industry. We are engaged in manufacturing and marketing of solar inverter and storage energy battery. Through vast experience, we established a list of certified manufacturers that have all the relevant ICE, UL, ISO and other certifications required as well as proven commitment to quality. Supplying high quality products is the foundation of our company. Our plant has a strict quality control system and is equipped with state-of-the-art process and production facilities.
All of our efforts during manufacturing are aimed at provided the Customer with the peace of mind that when the equipment arrives on location, it is ready to go to work, and it will perform reliably. We strive to provide our clients with high quality products, good service, timely delivery and competitive prices and look forward to cooperating with you.
product 15kwh low voltage ess battery 48v 280ah 314ah lifepo4 floor standing design ce un383 parallel deye inverter supported-12
product 15kwh low voltage ess battery 48v 280ah 314ah lifepo4 floor standing design ce un383 parallel deye inverter supported-13
FAQ
Q1: What’s the life of meritsun wall mounted battery?
A: 80% DOD more than 8000 cycles

Q2: Can the battery be connect in parallel?
A: Yes,support in parallel for more than 16pcs

Q3: Can the wall mounted battery work with my hybrid inverter?
A: Yes, the wall mounted battery suitable for all off grid and hybrid inverter

Q4: What’s the warranty of wall mounted battery?
A: 10 years,we support extended warranty services

Q5: What is the battery output power?
A:15KW Per battery

Q6: Does the wall mounted battery including inverter?
A: No, is battery only, so it is more flexible to work with different brand of inverter preferred by customer.

Q7: Does the Floor Stand battery with communication function?
A: Yes, meritsun wall mounted battery with RS232&485 communication with PC and smart LCD for monitoring.
×
