10 Year Warranty 48 Volt 100ah Lifepo4 Battery 51.2V 200Ah 280ah 300Ah 400Ah 15kwh Power Wall Lithium Battery Pack Waterproof
10 Year Warranty 48 Volt 100ah Lifepo4 Battery 51.2V 200Ah 280ah 300Ah 400Ah 15kwh Power Wall Lithium Battery Pack Waterproof
10 Year Warranty 48 Volt 100ah Lifepo4 Battery 51.2V 200Ah 280ah 300Ah 400Ah 15kwh Power Wall Lithium Battery Pack Waterproof
10 Year Warranty 48 Volt 100ah Lifepo4 Battery 51.2V 200Ah 280ah 300Ah 400Ah 15kwh Power Wall Lithium Battery Pack Waterproof
10 Year Warranty 48 Volt 100ah Lifepo4 Battery 51.2V 200Ah 280ah 300Ah 400Ah 15kwh Power Wall Lithium Battery Pack Waterproof
10 Year Warranty 48 Volt 100ah Lifepo4 Battery 51.2V 200Ah 280ah 300Ah 400Ah 15kwh Power Wall Lithium Battery Pack Waterproof
10 Year Warranty 48 Volt 100ah Lifepo4 Battery 51.2V 200Ah 280ah 300Ah 400Ah 15kwh Power Wall Lithium Battery Pack Waterproof
10 Year Warranty 48 Volt 100ah Lifepo4 Battery 51.2V 200Ah 280ah 300Ah 400Ah 15kwh Power Wall Lithium Battery Pack Waterproof
10 Year Warranty 48 Volt 100ah Lifepo4 Battery 51.2V 200Ah 280ah 300Ah 400Ah 15kwh Power Wall Lithium Battery Pack Waterproof
10 Year Warranty 48 Volt 100ah Lifepo4 Battery 51.2V 200Ah 280ah 300Ah 400Ah 15kwh Power Wall Lithium Battery Pack Waterproof
10 Year Warranty 48 Volt 100ah Lifepo4 Battery 51.2V 200Ah 280ah 300Ah 400Ah 15kwh Power Wall Lithium Battery Pack Waterproof
10 Year Warranty 48 Volt 100ah Lifepo4 Battery 51.2V 200Ah 280ah 300Ah 400Ah 15kwh Power Wall Lithium Battery Pack Waterproof

10 Year Warranty 48 Volt 100ah Lifepo4 Battery 51.2V 200Ah 280ah 300Ah 400Ah 15kwh Power Wall Lithium Battery Pack Waterproof

Get a Quote
Product Description
product 10 year warranty 48 volt 100ah lifepo4 battery 512v 200ah 280ah 300ah 400ah 15kwh power wall lithium battery pack waterproof-2
Products Description
product 10 year warranty 48 volt 100ah lifepo4 battery 512v 200ah 280ah 300ah 400ah 15kwh power wall lithium battery pack waterproof-3

Advantages:

◇Modular, compact, and lightweight design
◇One-key switch for easy operation
◇Supports long-term charge/discharge cycles with 8500 cycles @ ≥80% capacity retention
◇Advanced multi-level energy consumption management
◇High-performance processor and premium international components
◇Multiple communication interfaces: RS485, RS232, CAN,BLUETOOTH
◇Highly compatible BMS for seamless integration with energy storage and hybrid inverters
product 10 year warranty 48 volt 100ah lifepo4 battery 512v 200ah 280ah 300ah 400ah 15kwh power wall lithium battery pack waterproof-4
Specification
Battery Specifications
Model No
GSL-051280A-B-GBP2F
Nominal Parameters
Battery Chemistry
LiFePO4
Voltage
51.2V
Operating Voltage
46-56V
Capacity
280Ah
Energy
14.34Kwh
Scalability
Max.16pcs in parallel (262kWh)
Recomend Discharge Energy ( 80% DOD)
13.10Kwh
Charge/Discharge
Current
Recommend
100A
Max.
150A
Peak(2mins,25℃)
200A
Basic Parameters
Recommend Depth of Discharge
90%
Dimension (W/H/D)
700*1050*200mm / 27.6*41.3*7.9 in
Weight Approximate
145.5kgs / 320 lbs
Master LED Indicator
4 LED (SOC:25%~100%)
2 LED (working, alarming, protecting)
IP Rating of Enclosur
IP65
Working Temperature
Charge:0℃~55℃ Discharge:-20℃~55℃
Storage Temperature
0℃~35℃
Humidity
5%~95%
Altitude
≤2000m
Cycle Life(25±2℃,0.5C/0.5C,80%EOL)
≥8500
Installation
Ground/Outdoor
Communication Port
CAN2.0, RS485
Warranty Period [3]
10 years
Certification
UL1973, UL9540A, CB-IEC62619,
CE-EMC, UN38.3, MSDS,UL9540
product 10 year warranty 48 volt 100ah lifepo4 battery 512v 200ah 280ah 300ah 400ah 15kwh power wall lithium battery pack waterproof-5
product 10 year warranty 48 volt 100ah lifepo4 battery 512v 200ah 280ah 300ah 400ah 15kwh power wall lithium battery pack waterproof-6
A solar energy storage system typically includes components such as solar panels storage batteries, and inverters. lts operation principle is as follows:
Solar panels: Convert sunlight into direct current (DC) electricity. When sunlight isreceived by the solar panels, they generate DC electricity and send it to the storage batteries for storage.
Storage batteries: Store the electricity generated by the solar panels. During the day, the storage batteries can store excess electricity generated by the solar panelsfor use at night or during cloudy weather. When electricity is needed, the storage batteries release the stored energy.
Inverter: Converts the DC electricity stored in the storage batteries into alternatingcurrent (AC) electricity for use. The inverter converts the DC electricity stored in thestorage batteries into AC electricity, which is supplied to household appliances.
product 10 year warranty 48 volt 100ah lifepo4 battery 512v 200ah 280ah 300ah 400ah 15kwh power wall lithium battery pack waterproof-7
product 10 year warranty 48 volt 100ah lifepo4 battery 512v 200ah 280ah 300ah 400ah 15kwh power wall lithium battery pack waterproof-8
product 10 year warranty 48 volt 100ah lifepo4 battery 512v 200ah 280ah 300ah 400ah 15kwh power wall lithium battery pack waterproof-9
product 10 year warranty 48 volt 100ah lifepo4 battery 512v 200ah 280ah 300ah 400ah 15kwh power wall lithium battery pack waterproof-10
product 10 year warranty 48 volt 100ah lifepo4 battery 512v 200ah 280ah 300ah 400ah 15kwh power wall lithium battery pack waterproof-11
product 10 year warranty 48 volt 100ah lifepo4 battery 512v 200ah 280ah 300ah 400ah 15kwh power wall lithium battery pack waterproof-12
product 10 year warranty 48 volt 100ah lifepo4 battery 512v 200ah 280ah 300ah 400ah 15kwh power wall lithium battery pack waterproof-13
product 10 year warranty 48 volt 100ah lifepo4 battery 512v 200ah 280ah 300ah 400ah 15kwh power wall lithium battery pack waterproof-14
product 10 year warranty 48 volt 100ah lifepo4 battery 512v 200ah 280ah 300ah 400ah 15kwh power wall lithium battery pack waterproof-15
Company Profile
product 10 year warranty 48 volt 100ah lifepo4 battery 512v 200ah 280ah 300ah 400ah 15kwh power wall lithium battery pack waterproof-16
SICHUAN GRANDTECH NEW ENERGY TECHNOLOGY CO. LTD. is a professional supplier of solar energy storage industry. We are engaged in manufacturing and marketing of high quality solar inverter and storage energy battery, with the certificates of IEC62619,UL1741(SA&SB),
UL1973,UL9540,UL9540A,ETL,ISO etc...
We are ability to make the fast delivery to our clients in USA, as we have a warehouse in California, USA. We strive to provide our clients with high quality products, good service, timely delivery and competitive prices and look forward to cooperating with you.
product 10 year warranty 48 volt 100ah lifepo4 battery 512v 200ah 280ah 300ah 400ah 15kwh power wall lithium battery pack waterproof-17
product 10 year warranty 48 volt 100ah lifepo4 battery 512v 200ah 280ah 300ah 400ah 15kwh power wall lithium battery pack waterproof-18
FAQ
Q1: How long do GRANDTECH batteries last?
Up to 8,500 cycles with recommended 80–90% depth of discharge for maximum lifespan.
Q2: Are GRANDTECH batteries safe?
Yes. They use stable LiFePO₄ chemistry and feature a smart BMS that protects against overcharge, over-discharge, short
circuits,and temperature extremes.
Q3: What temperature range do the batteries support?
They operate reliably between –20°C and 60°C. For charging below 0°C, reduced charging current is advised.
Q4: Are these batteries compatible with most inverters?
Yes. Compatible with about 80% of mainstream inverters and charge controllers.
Q5: Can I expand the battery system later?

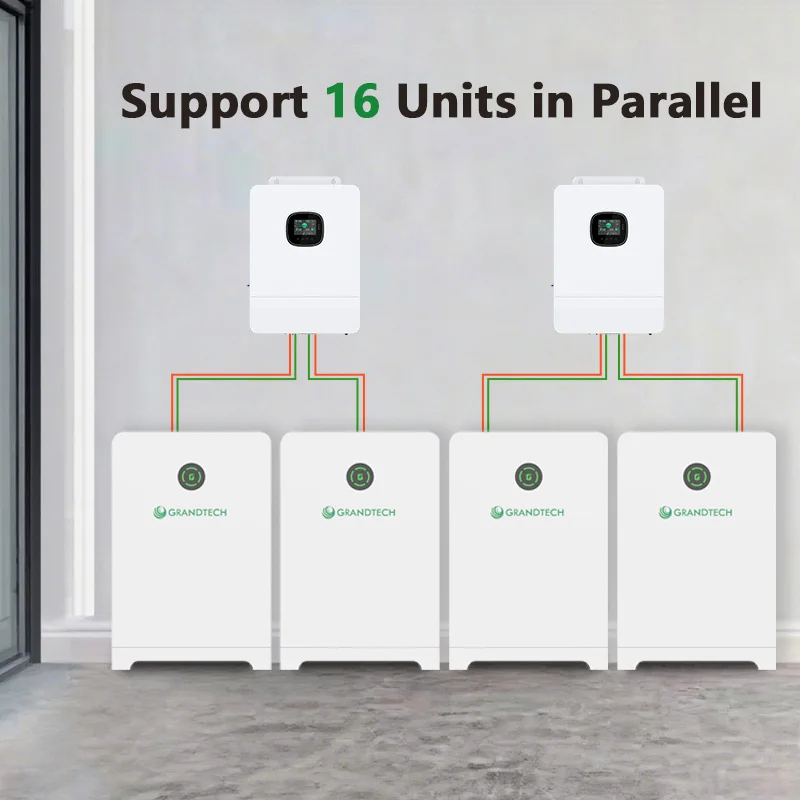

Yes. Up to 16 battery units can be connected in parallel for easy capacity expansion.
Q6: What are the common applications for GRANDTECH batteries?
Widely used in off-grid solar, telecom backup, home energy storage, RV/marine power, and data centers.
Q7: Do you offer OEM/ODM services?
Yes, we provide customization options including branding, BMS settings, and packaging.
Q8: What logistics and shipping options are available?
We offer global shipping via air freight, sea freight, and express courier (DHL, FedEx, UPS) with secure packaging.
×
